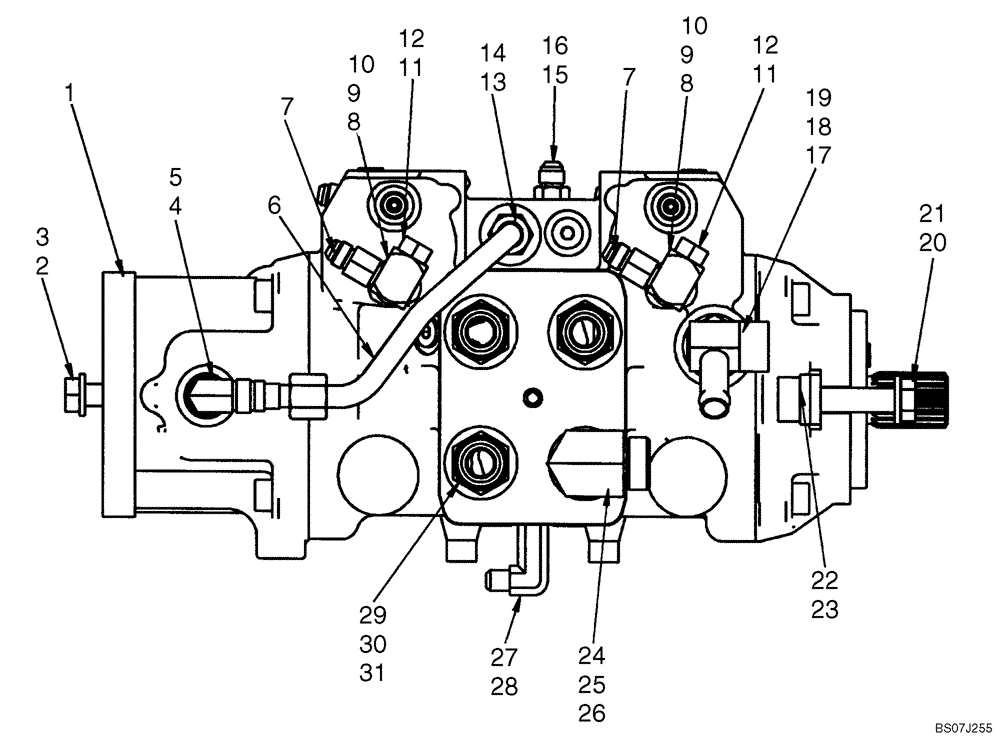

Запчасти Case 440CT (06-15) - HYDROSTATICS - PUMP FITTINGS (440CT) (06) - POWER TRAIN

1

87546977

PUMP,46 CC

A22; See Figure 06-47 - 06-53

1шт.

1

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 5

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

7

87604074

ADAPTER

6FJ x 6MJ W/ 1.2 Orifice

2шт.

8

87546979

ADAPTER

Incl 9, 10

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. 12; If Used

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

If Used

1шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 14; If Used

1шт.

13

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 14

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 16

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87571937

ADAPTER

Incl 18, 19

1шт.

18

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

21

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

22

87637186

NUT

M14 Class 10 ZND

2шт.

23

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

Washer, 15.3 x 28.5 x 6 HTS ZND

4шт.

24

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 25, 26

1шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 28

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 30, 31

3шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
