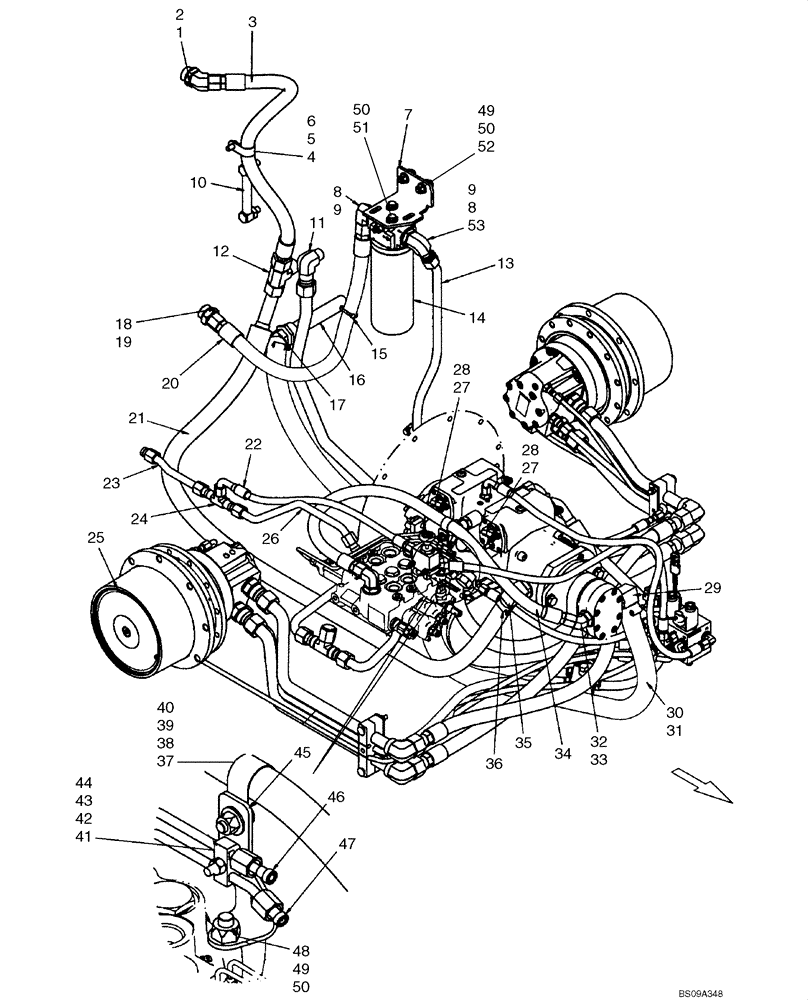

Запчасти Case 440CT (06-12) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (440CT) (06) - POWER TRAIN

1

87657980

ELBOW

Elbow; 37FL 45 ADJ 3/4 X 1.0 Tube; Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

810 mm (31.88 in); Upper Cooler

1шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

REF

INSTRUCTION

Hydrostatic Filter; For Mounting, See Figure 06-32

1шт.

7

87020901

BRACKET, SUPPORTING

Filter Mounting Bracket-Tan

1шт.

8

570024

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl. 9

1-2шт.

9

305412

O-RING

1шт.

10

87374752

GAUGE

Liquid Level

1шт.

11

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

12

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

13

87660856

HYD TUBE,19.05 mm OD x 422.6, 172.8 mm L

Tube, Valve To Filter, LH Wall; If Used

1шт.

14

87430661

FILTER

Hydrostatic Filter; See Figure 06-32

1шт.

15

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

16

H151399

FILTER STRAINER

Suction Line

1шт.

17

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

18

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl. 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

87720240

HOSE,19.05mm ID x 760mm L

Hose, Lower Cooler, 760mm (29 15/16 in.)

1шт.

21

87563971

HOSE

1859 mm (73.18 in); Charge Pump Supply

1шт.

22

87625890

HOSE

559 mm (22 in); Dump Valve Supply; If Used

1шт.

22

87707136

HOSE,9.53mm ID x 1220mm L

1220mm (48.03 in); Dump Valve Supply

1шт.

23

87564000

HYD TUBE,15.875 mm OD x 219.7 mm L

Dump Valve Drain, 220mm (8 11/16 in.); If Used

1шт.

23

87629970

HYD TUBE

Dump Valve Drain, 212mm (8 5/16 in.); If Used

1шт.

24

87644290

HYD CONNECTOR

Tee, 5/8 x 5/8 x 1/2 37 FL; If Used

1шт.

25

REF

INSTRUCTION

Undercarriage Plumbing; See Figure 06-13

1шт.

26

87563998

HYD TUBE,15.875 mm OD

Dump Valve Drain; If Used

1шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

2шт.

28

87604074

ADAPTER

6FJ x 6MJ W/ 1.2 Orifice

1шт.

29

86729372

FITTING,90 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

30

87376457

HOSE

1915 mm (75.39 in); Suction

1шт.

31

87039085

HOSE CLAMP,32mm - 54mm

2шт.

32

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl.33

1шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

87547070

HOSE,15.88mm ID x 1000mm L

1000 mm (39.37 in); Valve Supply

1шт.

35

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

90 Barb 1 Hose x 1-5/16-12 OR

1шт.

36

86536660

HOSE CLAMP,25mm - 44mm

1шт.

37

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

38

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

39

9628098

NUT,M8 x 1.25, Cl 10

1шт.

40

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

41

608089

CLAMP

Double

1шт.

42

87030561

NUT,M6 x 1, Cl 8

1шт.

43

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

44

80120101

BOLT

M6 x 30 Cl 8.8 Znd

1шт.

45

87678506

BRACKET

Hose Support; Replaces 87564009

1шт.

46

87563969

HYD TUBE,6.35 mm OD

Pilot

1шт.

47

87563968

HYD TUBE,6.35 mm OD

Pilot

1шт.

48

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

49

86512554

NUT,M10 x 1.5, Cl 10

3шт.

50

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

51

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

52

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

53

87659248

Oil Cooler Bypass; See Fig 06-31A; If Used

1шт.

54

87492349

Oil Cooler Bypass; See Fig 06-31B

1шт.
