Запчасти Case 440CT (06-04D) - JOYSTICK CONTROL, ASSEMBLY, RIGHT HAND - H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

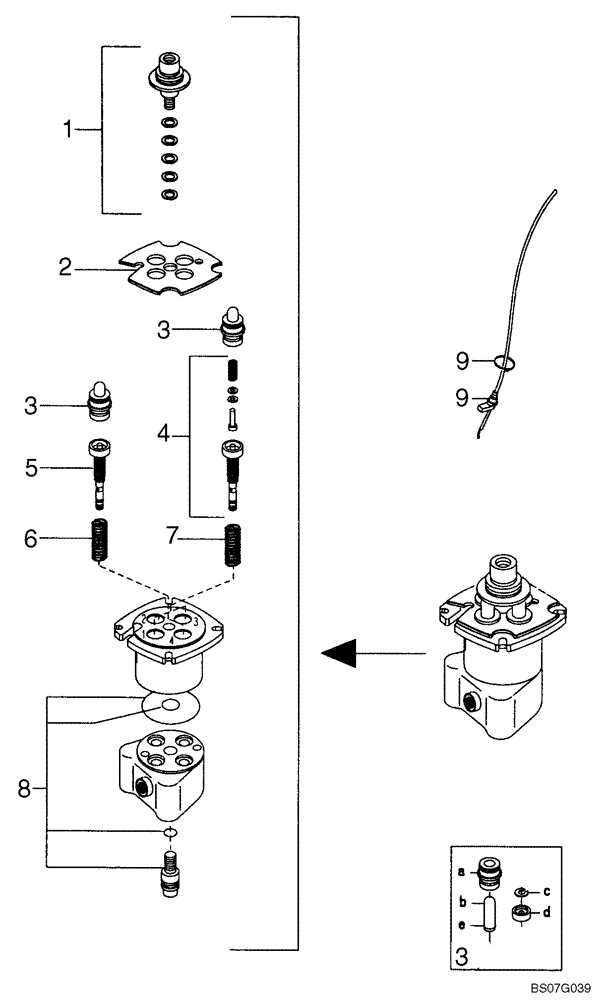

Схема запчастей Case 440CT - (06-04D) - JOYSTICK CONTROL, ASSEMBLY, RIGHT HAND - H PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN
3
3
2
3
5
4
7
6
1
9
9
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MODELS WITH PILOT CONTROL

1шт.

87357241

HYDRAULIC VALVE

Joystick Control; H Pattern Right Hand; Incl. 1 - 4, 5 And 6 - 9; If Used

1шт.

87740389

HYDRAULIC VALVE

Joystick Control; H Pattern Right Hand; Incl. 1 - 4, 5 And 6 - 9

1шт.

1

87548833

SERVICE KIT

Bent Lever Cardan

1шт.

2

87548835

PLATE

Retaining, Standard

1шт.

3

87614023

KIT

Hollow

4шт.

4

84124854

KIT

Kit; Port 1 & 3

2шт.

5

87614024

REGULATOR

Port 2

1шт.

5a

87594866

SERVICE KIT

Regulator w/plunder; Port 4

1шт.

6

87614019

SPRING KIT

Heavy

2шт.

7

87614020

SPRING

Medium

2шт.

8

87548848

SERVICE KIT

Standard Seal

1шт.

9

87548874

SERVICE KIT

Cable

1шт.

Выбрано товаров: 13
