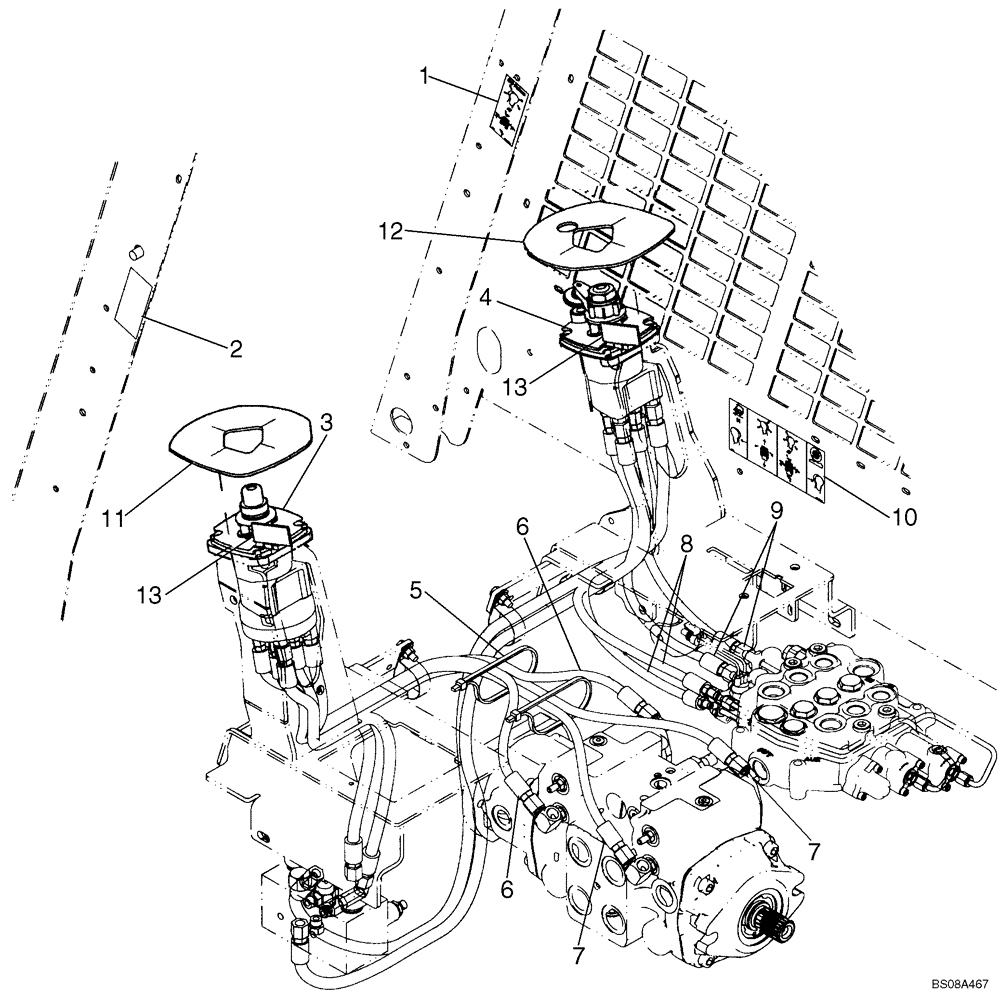

Запчасти Case 440CT (06-04A) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

87575602

SERVICE KIT

ISO Pattern Control; Incl. 1 - 10

1шт.

1

87573278

DECAL

ISO Pattern RH

1шт.

2

87573277

DECAL

ISO Pattern LH

1шт.

3

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern LH

1шт.

4

87600623

VALVE

Joystick Valve, ISO Pattern RH

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

6

87604072

HOSE

800 mm, 31.50 in. Length

2шт.

7

87604070

HOSE

920 mm, 36.22 in. Length

2шт.

8

87604062

HOSE,6.35mm ID x 590mm L

590 mm, 23.23 in. Length

2шт.

9

87604069

HOSE,6.35mm ID x 490mm L

490 mm, 19.29 in. Length

2шт.

10

87573274

DECAL

Control Identification - ISO

1шт.

11

87618653

FOAM INSULATION

Secondary Seal, LH

1шт.

12

87618657

FOAM INSULATION

Secondary Seal, RH

1шт.

13

87621155

SEAL

Seal

2шт.
