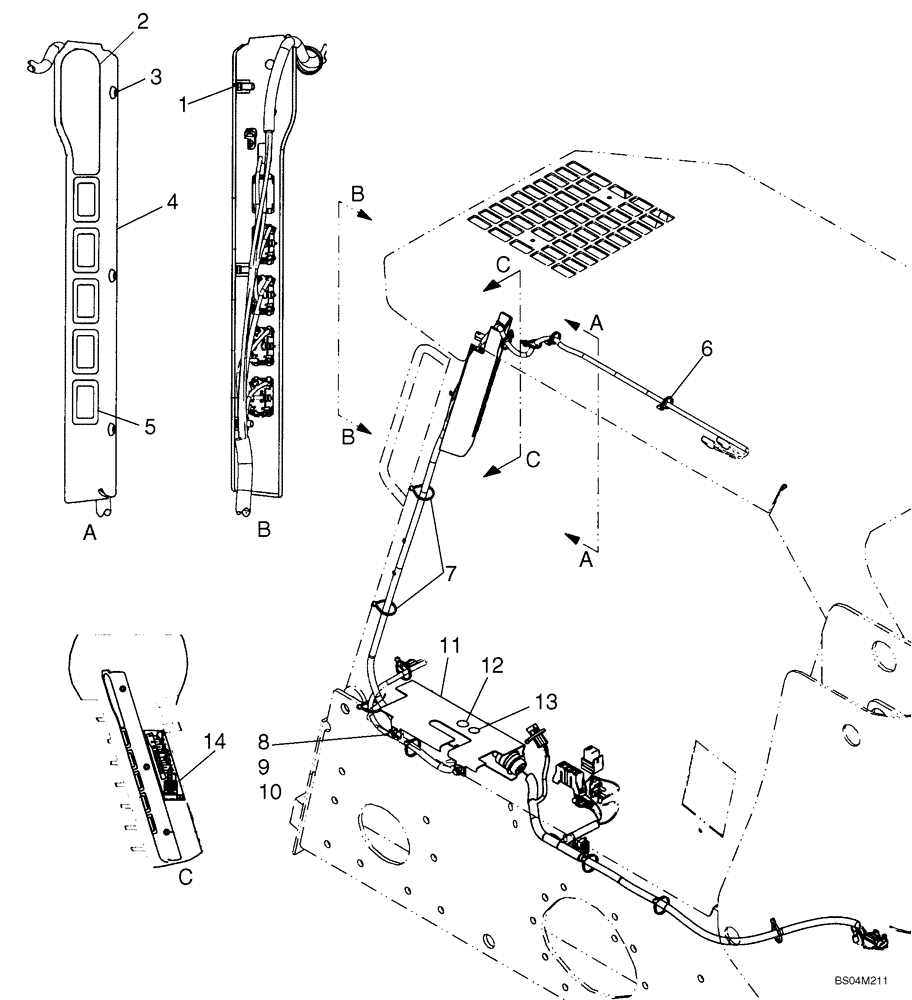

Запчасти Case 440CT (04-10) - OPTIONS, ELECTRICAL - MOUNTING (04) - ELECTRICAL SYSTEMS

1

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

2

87034948

DECAL

Blank Cover

1шт.

3

340-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

3шт.

4

87035417

PANEL

Used With Decal Figure 09-36, Ref 5

1шт.

Panel does not include decal (Blank decal is 87034948)

1шт.

4

87555704

PANEL

Used With Decal Figure 09-36, Ref 5A

1шт.

Panel does not include decal (Blank decal is 87034948)

1шт.

5

86000535

PLUG,1.427" x .62", Plastic

5шт.

6

347610A1

ANCHOR

4шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

833-40408

NUT,M8, U

2шт.

10

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

87035749

COVER

Options Harness

1шт.

12

86627131

PLUG,Dome, .875" hole, Nylon

1шт.

13

84014802

PLUG,Dome, .750" hole, Nylon

1шт.

14

87035742

DECAL

Option Panel

1шт.
