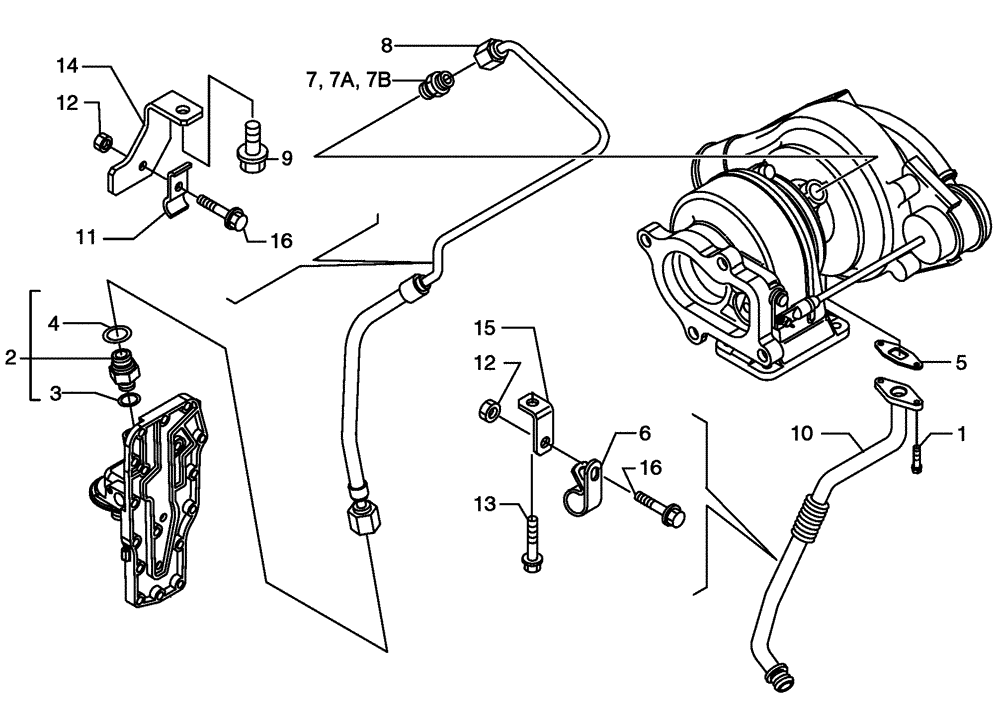

Запчасти Case 440CT (02-20B) - TURBOCHARGER, PIPES AND CONNECTIONS (02) - ENGINE

2852753

TUBE

Nozzle, Oil Spray; Not Illustrated

1шт.

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

2852229

HYD CONNECTOR,M10 x 1.25 x 9/16"-18

1шт.

7a

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

2852256

TUBE

Turbo Oil Feed

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

10

2852230

TUBE,507, 150.34 mm Length

Oil Drain

1шт.

11

2852258

CLAMP

1шт.

12

2852197

FLANGE NUT,M6 x 1

2шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

14

2852563

BRACKET

1шт.

15

2852196

BRACKET

1шт.

16

2852101

FLANGE BOLT,Hex, M6 x 16mm

2шт.
