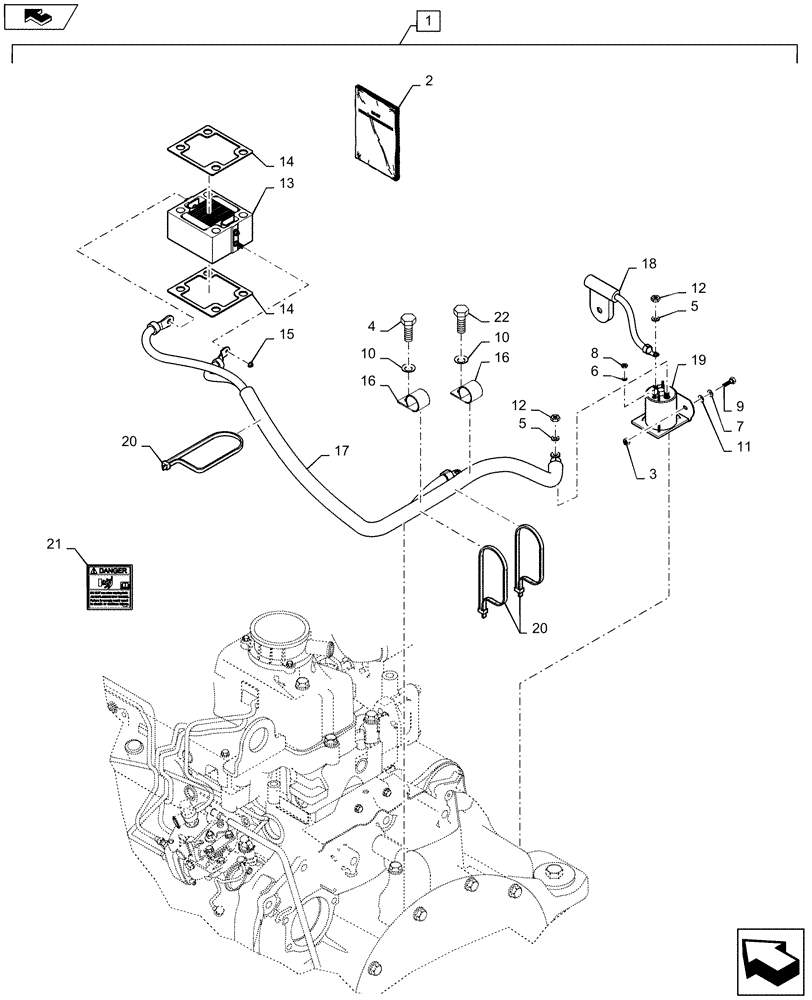

Запчасти Case 440CT (88.010.02) - DIA KIT, GRID HEATER (88) - ACCESSORIES

1

87459062

DIA KIT, ADD PROD

Grid Heater, Incl 2 - 22

1шт.

2

6-75172

INSTRUCTION

1шт.

3

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

4

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

5

80681

LOCK WASHER,5/16"

2шт.

6

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

7

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

8

87825

NUT,#10-32

Machine

1шт.

9

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

12

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

13

82017872

HEATER

Grid Assembly

1шт.

14

86014151

GASKET,93mm L x 98mm L

Tube - Air Intake Heater

2шт.

15

86511444

FLANGE NUT,Hex, M6 x 1

Special

2шт.

16

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

Closed

2шт.

17

87030820

CABLE

1шт.

18

87460067

CABLE ASSY.

Grid Heater

1шт.

19

87406968

SOLENOID SWITCH

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

21

629086

DANGER DECAL

Ether

1шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.
