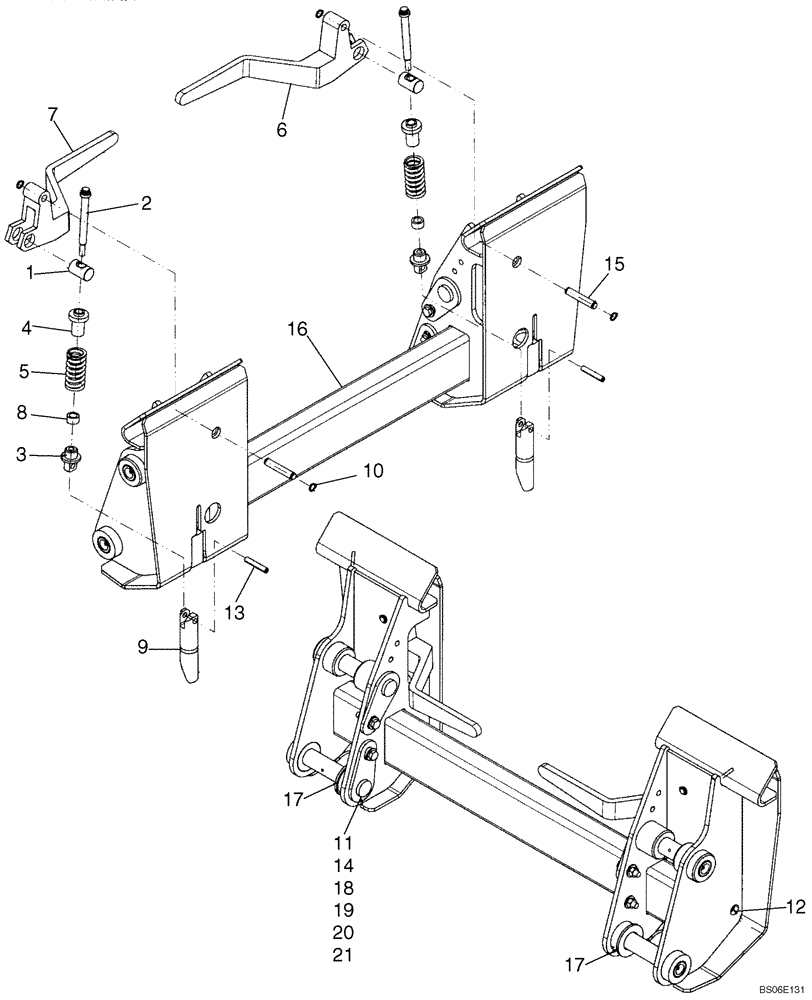

Запчасти Case 440CT (09-03) - COUPLER, MECHANICAL (09) - CHASSIS

1

9829733

PIN,25.4mm OD x 39mm L

2шт.

2

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

12 Point Shoulder Bolt .50 X 4.0 Lg; Replaces 86506112

2шт.

3

87579303

PIN,34.92mm OD x 43.6mm L

Replaces 86510869

2шт.

4

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

2шт.

5

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

6

86633195

HANDLE

Left Hand

1шт.

7

86633196

HANDLE

Right Hand

1шт.

8

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Spacer

2шт.

9

87413030

PIN

Latch Pin; If Used

2шт.

9

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

10

100-1650

SNAP RING,#50, Ext

4-2шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

12

87414

LUBE NIPPLE,1/4" - 28

4шт.

13

38-32432

PIN,3/8" x 2", Coiled

2шт.

14

87659406

PIN,31.75mm OD x 169.2mm L

Replaces 394582A2

4шт.

15

87387540

PIN,12.7mm OD x 67.55mm L

Replaces 395968A1; Handle Pivot

2шт.

16

404599A5

FRAME,W/Coupler

1шт.

Does Not Include Pins, Handles, or Any Hardware

1шт.

17

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

18

906091R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8 x 0.375 x Strg Pipe; Replaces 660200R1

4шт.

19

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

20

86512554

NUT,M10 x 1.5, Cl 10

4шт.

21

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.
