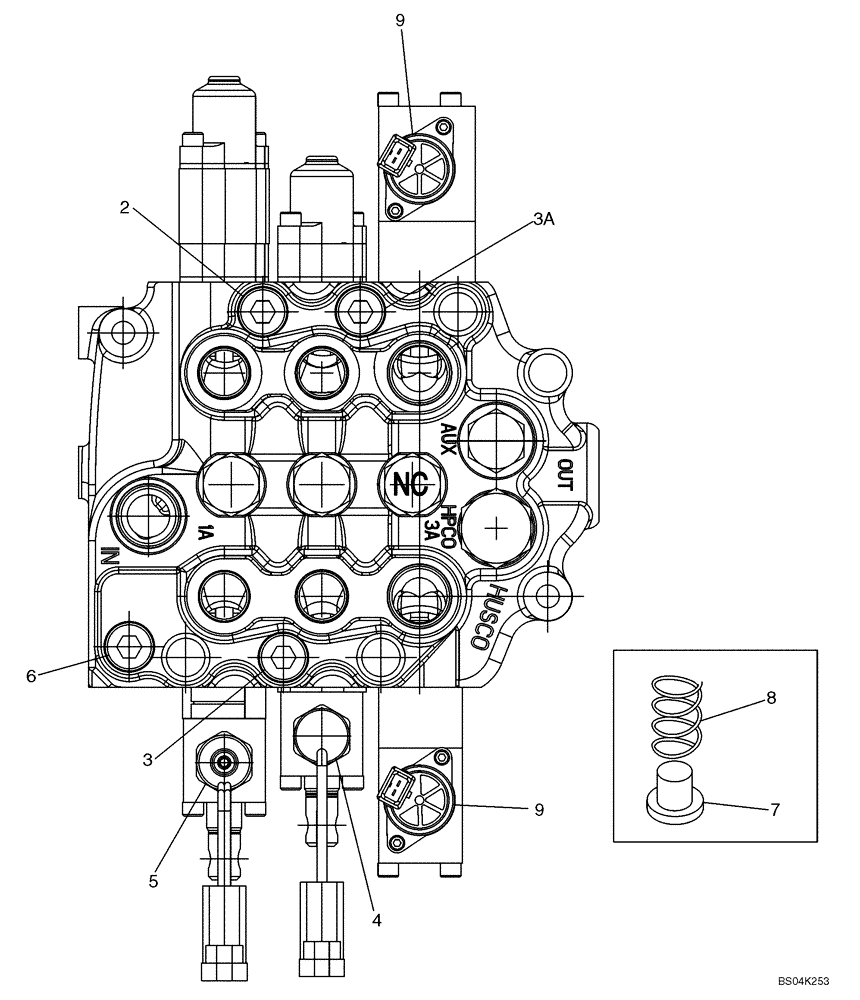

Запчасти Case 440CT (08-10) - VALVE ASSY, CONTROL (08) - HYDRAULICS

87446766

CONTROL VALVE

Incl. 1 - 9

1шт.

87635385R

REMAN-HYD VALVE

440 SKID STEER, NA BSN N8M474469 (2/05-), 440CT COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07), Both Reman for New PN 87446766

1шт.

87635385C

CORE-VALVE HYD

Return Number

1шт.

87527174

VALVE

High Flow; Replaces 87446766; Component Parts Not Yet Available

1шт.

87635385R

REMAN-HYD VALVE

440 SKID STEER, NA BSN N8M474469 (2/05-), 440CT COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07), Both High Flow, Reman for New PN 87527174

1шт.

87635385C

CORE-VALVE HYD

Return Number

1шт.

1

87445930

SEAL KIT

See Figure 08-11

1шт.

2

87445935

VALVE

Workport, Relief; Component Parts Not Serviced Separately

1шт.

3

87424302

PLUG

Workport, Shutoff Plug; Component Parts Not Serviced Separately

2шт.

3a

87445932

VALVE

Anti-Cavitation Cartridge; If Used; Component Parts Not Serviced Separately

1шт.

4

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool, Lockout; Component Parts Not Serviced Separately

1шт.

5

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool, Lockout; Component Parts Not Serviced Separately

1шт.

6

87445991

VALVE

Main Relief; Component Parts Not Serviced Separately

1шт.

7

87446002

POPPET

Load Check; Component Parts Not Serviced Separately

2шт.

8

87446003

SPRING,6.7mm OD

Load Check; Component Parts Not Serviced Separately

2шт.

9

87446004

SOLENOID VALVE

High Flow; Component Parts Not Serviced Separately

2шт.
