Запчасти Case 440CT (08-08A) - HYDRAULICS, ATTACHMENT (MODELS WITH PILOT CONTROL) (08) - HYDRAULICS

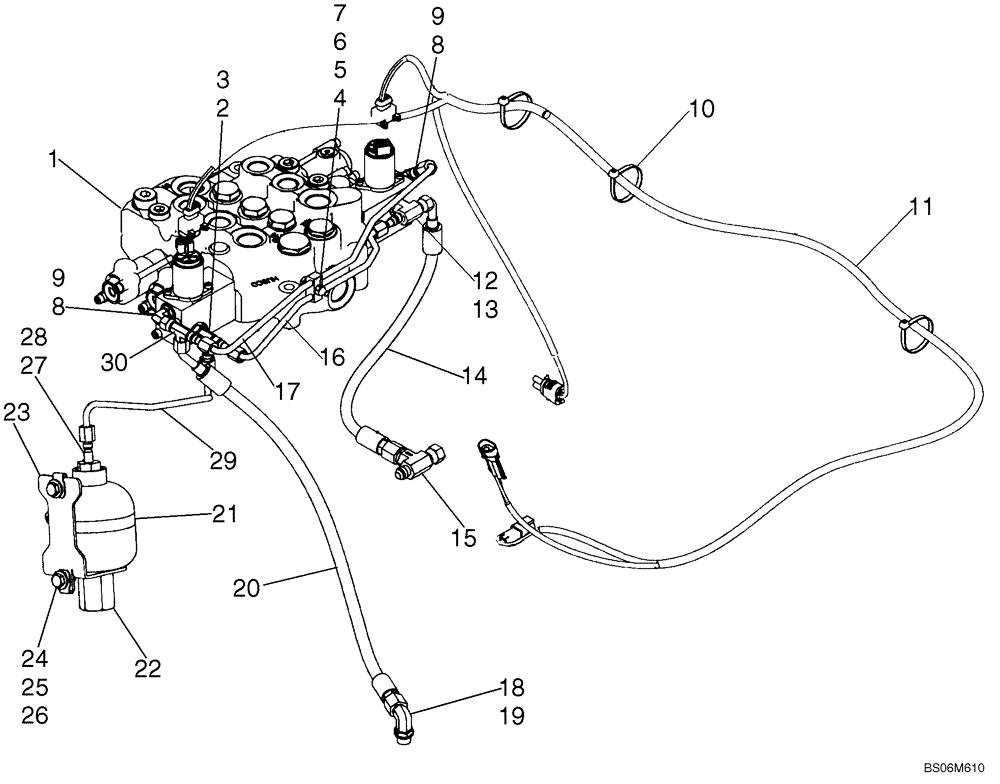

Схема запчастей Case 440CT - (08-08A) - HYDRAULICS, ATTACHMENT (MODELS WITH PILOT CONTROL) (08) - HYDRAULICS
10
22
26
28
11
13
23
19
8
8
4
25
18
17
30
12
16
7
14
6
27
3
1
9
20
15
2
9
29
5
21
24

Артикул

Название

Примечание

Количество

87575606

SERVICE KIT

Incl. 1 - 30

1шт.

1

87546975

HYDRAULIC VALVE

Pilot Control Models With Hydraulic Attachment; Incl. Figures 08-21B - 08-24, 08-28, 08-30, 08-32 - 08-37

1шт.

2

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 3

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

608089

CLAMP

1шт.

5

86624181

WASHER,M6

1шт.

6

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

If Used

1шт.

6

80120101

BOLT

If Used

1шт.

7

87030561

NUT,M6 x 1, Cl 8

1шт.

8

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 9

2шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

11

87447970

HARNESS

1шт.

12

16989

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

Incl. 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

87563974

HOSE

Supply

1шт.

15

87438766

TEE

Tee With Check Valve

1шт.

16

87563970

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

17

87564001

HYD TUBE,6.35 mm OD

Drain

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87460042

HOSE,6.35mm ID x 560mm L

Case Drain

1шт.

21

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

If Used

1шт.

21

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

22

86624732

ACCUMULATOR

If Used

1шт.

22

87376969

ACCUMULATOR

Hydraulic Pilot Controls

1шт.

23

87440253

ANGLE

Mounting Bracket; If Used

1шт.

23

87621245

ANGLE

Mounting Bracket; If Used

1шт.

23

87473790

BRACKET

Mounting Bracket

1шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

122158A1

NUT,M8, U

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

87010110

HYD CONNECTOR

Straight; Incl. 28; If Used

1шт.

27

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 28A

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

If Used

1шт.

28a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

87447764

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

30

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

Выбрано товаров: 38
