Запчасти Case 440CT (08-03) - HYDRAULICS - AUXILIARY (08) - HYDRAULICS

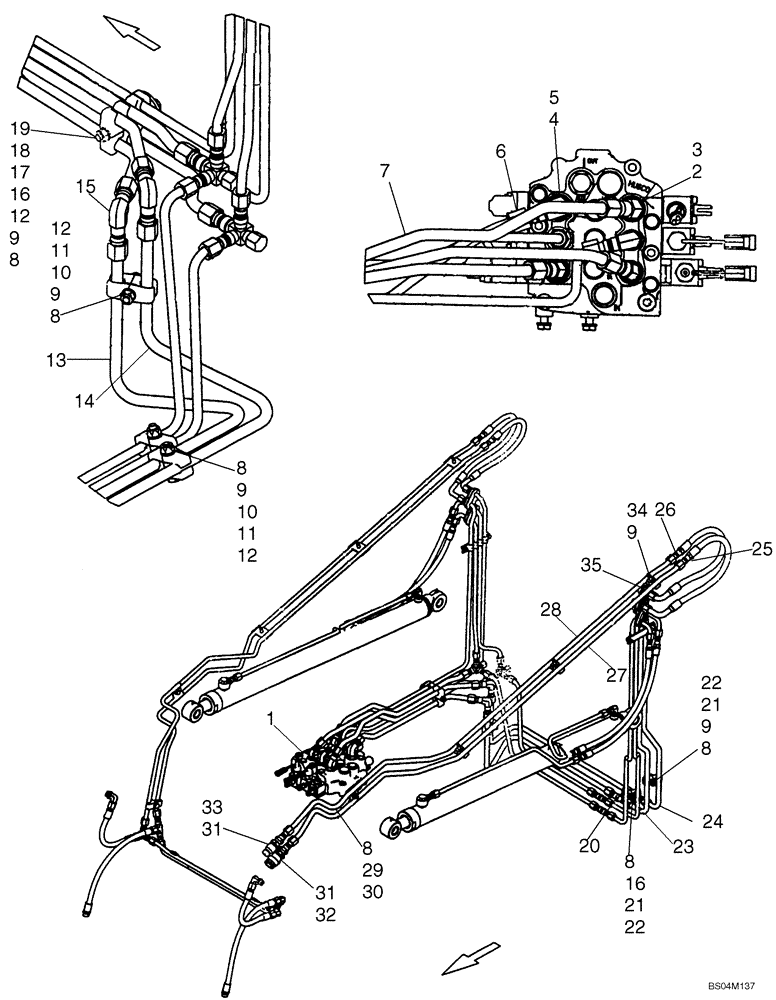

Схема запчастей Case 440CT - (08-03) - HYDRAULICS - AUXILIARY (08) - HYDRAULICS
8
9
15
1
13
8
7
10
16
25
12
18
19
11
10
27
11
26
22
34
9
3
4
9
5
21
12
8
17
30
12
35
14
24
8
2
33
31
8
20
28
22
32
16
6
8
2
31
23
29
22
9

Артикул

Название

Примечание

Количество

1

87446760

CONTROL VALVE

3000 PSI; See Figure 08-09

1шт.

1

87635384R

REMAN-HYD VALVE

440 SKID STEER, NA BSN N8M474469 (2/05-), 440CT COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07), Both AUXILIARY, 3000 PSI , Reman for New PN 87446760

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available; If Used

1шт.

1

87635384R

REMAN-HYD VALVE

440 SKID STEER, NA BSN N8M474469 (2/05-), 440CT COMPACT TRACK LOADER - BSN N7M483467 (3/06-12/07), Both AUXILIARY , Reman for New PN 87527172

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31

1шт.

2

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

87445746

HYD TUBE,.625" OD

5/8 Tube

1шт.

7

87445750

HYD TUBE,.625" OD

5/8 Tube

1шт.

8

140017

WASHER,M10 x 20mm OD x 2mm Thk

11шт.

9

D120613

CLAMP,20mm ID

5/8

4шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

11

86512554

NUT,M10 x 1.5, Cl 10

2шт.

12

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

13

87424300

TUBE,15.88 mm OD x 516, 203 mm L

5/8 Tube

1шт.

14

87411776

TUBE,15.88 mm OD x 581.8, 256.5 mm L

5/8 Tube

1шт.

15

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

2шт.

16

D120679

CLAMP,Tube, 1/2"

1/2 in

2шт.

17

495-81239

WASHER,17/32" x 2 1/4" x .180"

1шт.

18

86500689

NUT,M10 x 1.5, Cl 10

1шт.

19

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

20

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

21

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

22

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10 -1.5

2шт.

23

87415448

TUBE,15.88 mm OD x 994.8, 208.2 mm L

5/8 Tube

1шт.

24

87415446

TUBE,15.88 mm OD x 1023.2, 158.2 mm L

5/8 Tube

1шт.

25

406087A1

HOSE ASSY.

650 mm (25.59 in)

1шт.

26

406240A1

HOSE ASSY.

625 mm (24.61 in)

1шт.

27

87024313

HYD TUBE,15.90 mm OD

1шт.

28

87024312

HYD TUBE,15.90 mm OD

1шт.

29

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

1шт.

30

86501706

CLAMP

Double

1шт.

31

595460

BHD LOCK NUT,7/8" - 14

2шт.

32

393394A1

COUPLING, BREAK AWAY

1/2 in Female

1шт.

33

87417308

COUPLING, BREAK AWAY

1/2 in Male; Incl. 87426762

1шт.

87426762

RING

1шт.

34

281-54928

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 1 3/4"

3шт.

35

87018001

SUPPORT

5/8

2шт.

Выбрано товаров: 42
