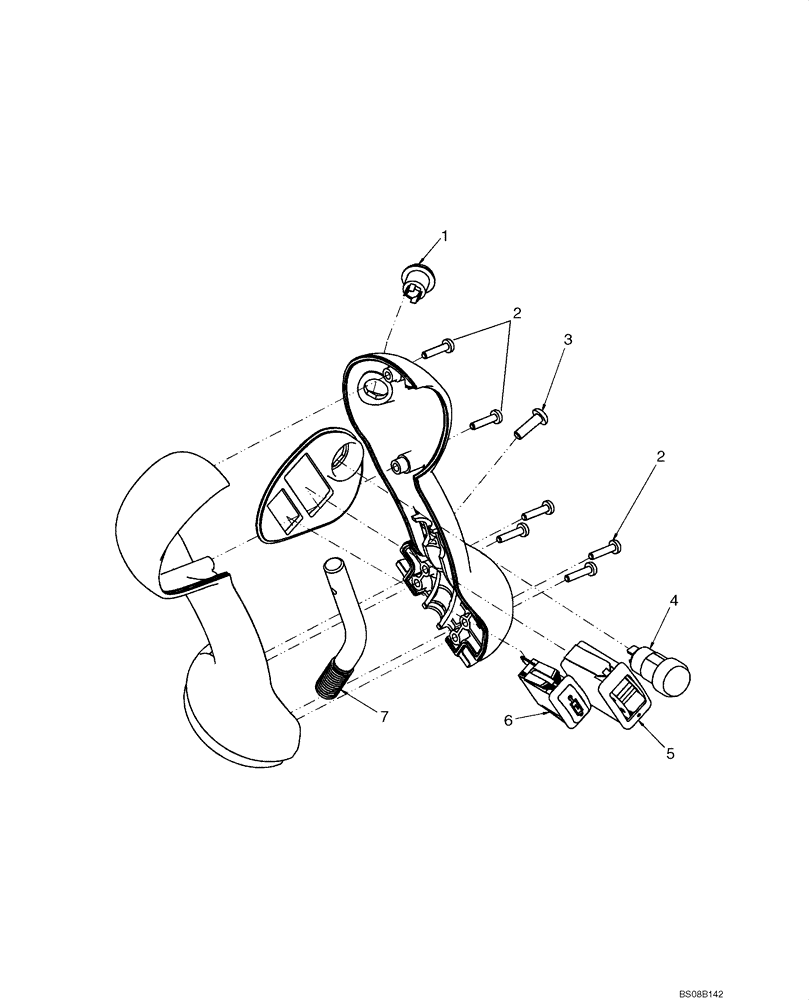

Запчасти Case 420CT (04-15) - CONTROL HANDLE, RH - DELUXE (04) - ELECTRICAL SYSTEMS

87641948

HANDLE GRIP

Control Handle, RH - Deluxe; Incl 1 - 7; Incl. Wire Harness NSS

1шт.

1

87673089

SWITCH

1шт.

2

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

#6-19 X .625

6шт.

3

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

#10-32 X .625

1шт.

4

87630127

SWITCH

Parking Brake

1шт.

5

87668736

SWITCH

Proportional Auxiliary Hydraulic Paddle Wheel Switch

1шт.

5

87748836

SWITCH

Proportional Auxiliary Hydraulic Knurled Wheel Switch

1шт.

6

87427685

SWITCH

Hydraulic M-O-M

1шт.

7

87652816

ROD

Rod, Pilot Handle Mounting

1шт.
