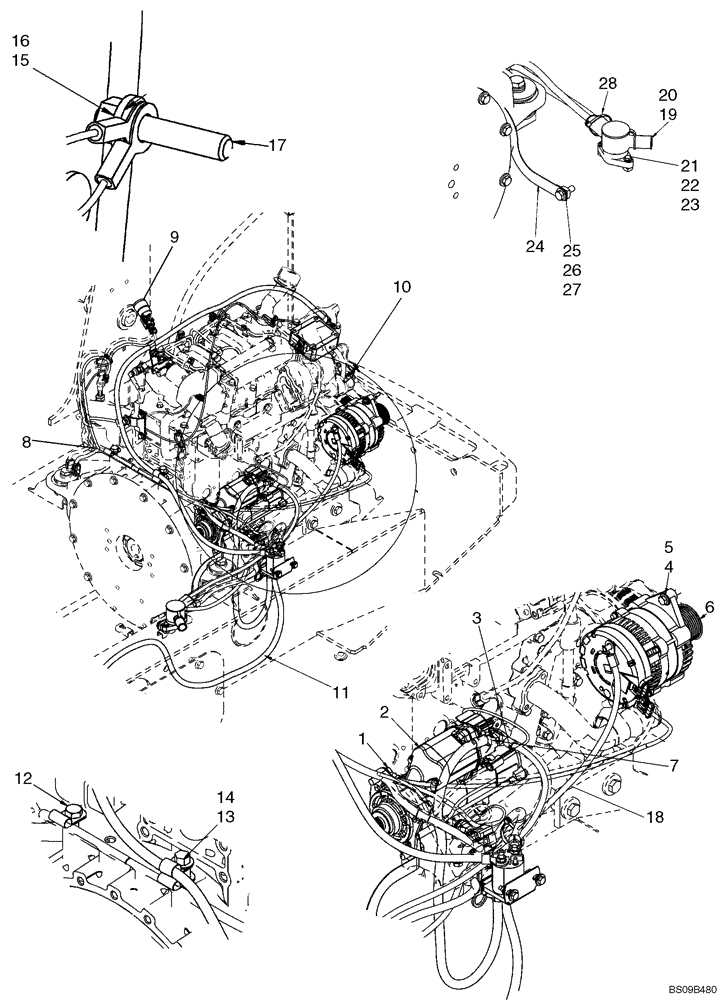

Запчасти Case 420CT (04-05) - ENGINE - ELECTRICAL (420CT) (04) - ELECTRICAL SYSTEMS

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

2

87638510

STARTER MOTOR,12V, 2.7kW

Denso, 3.0KW PA90S; If Used

1шт.

2

87638510R

REMAN-STARTER,12V, 2.7kW

Reman for New PN 87638510

1шт.

87638510C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

2

87040161

STARTER MOTOR,12V, 2.7kW

Denso, 2.7KW; If Used

1шт.

2

87040161R

REMAN-STARTER,12V, 2.7kW

Reman for New PN 87040161

1шт.

2

87040161C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

3

87053083

HARNESS

Harness, Starter Jumper

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

1шт.

5

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

If Used

1шт.

6

87042118

ALTERNATOR

Alternator, CASE Service

1шт.

6

87038475R

REMAN-ALTERNATOR

Reman for New PN 87042118

1шт.

6

87038475C

CORE-ALTERNATOR

Return Number

1шт.

7

87707133

NEG BATTERY CABLE

Cable, Starter To Power Distribution Point; If Used

1шт.

7

87741596

CABLE,614mm L

Cable, Starter To Power Distribution Point; If Used

1шт.

8

87720457

HARNESS

Harness, F5C Engine

1шт.

9

87013666

SWITCH,Air Filter Restriction

Air Restriction Switch

1шт.

10

87688409

TEMPERATURE SENDER,M10 x 1.0

Water Temperature Sending Unit

1шт.

11

87052670

CABLE ASSY.

Battery Cable, Positive

1шт.

12

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1-2шт.

13

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

14

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Clamp, Insul 11.1mm, M12 Bolt; If Used

2шт.

14

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

1шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

17

87458961

STUD

1шт.

18

87713728

CABLE

Cable, Alternator To Power Distribution Point; If Used

1шт.

18

87742136

CABLE,825mm L

Cable, Alternator To Power Distribution Point

1шт.

19

87630125

BOOT

Power Distribution Cover

1шт.

20

87630124

POST

Single Point Power Distribution Block

1шт.

21

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

22

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

24

87648689

GROUND STRAP

1шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

27

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Nut SQ. 10m - 1.5 W/Retaining 8 ZND

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
