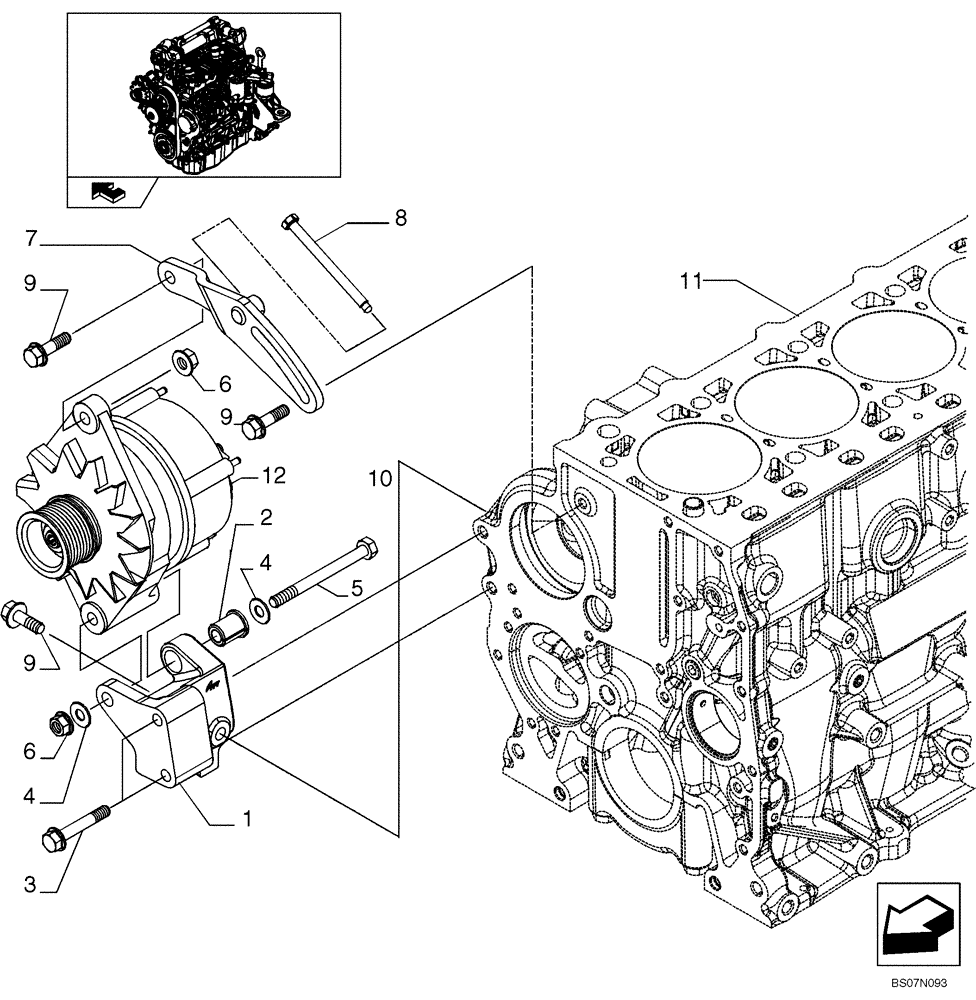

Запчасти Case 420CT (04-02) - ENGINE, ALTERNATOR MOUNTING (87546691) (04) - ELECTRICAL SYSTEMS

1

504276997

BRACKET, SUPPORTING

1шт.

2

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

3

16587824

BOLT,Hex, M10 x 1.5 x 60mm

2шт.

4

14489004

WASHER

D. 10X21X2 mm

2шт.

5

16609024

BOLT

1шт.

6

17044825

NUT,Hex, M10 x 1.25

2шт.

7

504243953

BELT TENSIONER

1шт.

8

504010032

SCREW

1шт.

9

16587325

SCREW,Hex, M10 x 35mm

3шт.

10

See Figure 02-39, Cylinder Block And Related Parts

1шт.

11

See Figure 02-39, Cylinder Block And Related Parts

1шт.

12

87042118

ALTERNATOR

Delco Remy, 12V 95A

1шт.

12

87038475R

REMAN-ALTERNATOR

Reman for New PN 87042118

1шт.

12

87038475C

CORE-ALTERNATOR

Return Number

1шт.
