Запчасти Case 420CT (03-09) - FUEL PUMP (87546691) (03) - FUEL SYSTEM

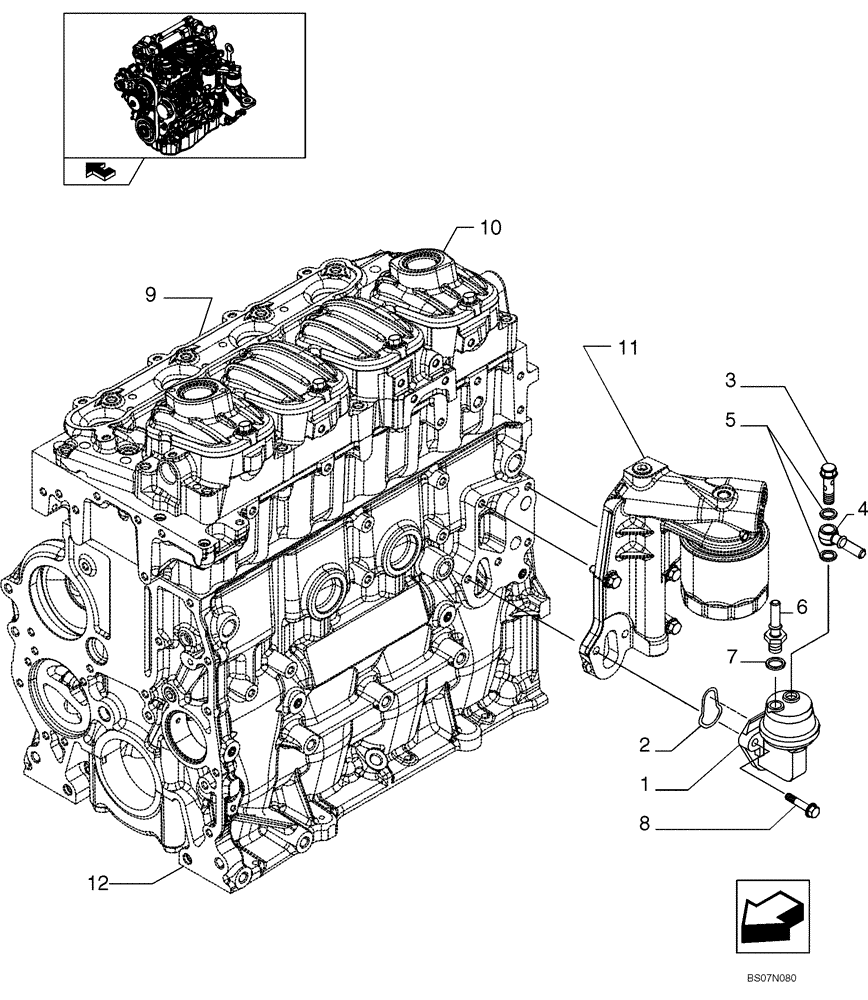

Схема запчастей Case 420CT - (03-09) - FUEL PUMP (87546691) (03) - FUEL SYSTEM
4
10
1
5
9
12
7
3
6
8
2
11

Артикул

Название

Примечание

Количество

1

2830122

FUEL PUMP

1шт.

2830122R

REMAN-INJECTION PUMP

Reman Fuel Pump

1шт.

2830122C

CORE-INJECTION PUMP

Return Number, FUEL INJECTION PUMP - for N.A. Only

1шт.

2

2830156

O-RING,70 Duro, M2.62 Thk

1шт.

3

504218933

BANJO BOLT

1шт.

4

504218931

FITTING

1шт.

5

17750480

SEAL,12.2mm ID x 17.8mm OD x 1.5mm Thk

2шт.

6

504197289

FITTING

1шт.

7

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

1шт.

8

16586725

BOLT,Hex, M8 x 1.25 x 40mm

M8 x 1.25 x 40

2шт.

9

REF

INSTRUCTION

See Figure 02-16, Cylinder Head And Related Parts

1шт.

10

REF

INSTRUCTION

See Figure 02-17, Cylinder Head Covers

1шт.

11

REF

INSTRUCTION

See Figure 02-30, Filter, Engine Oil

1шт.

12

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

Выбрано товаров: 14
