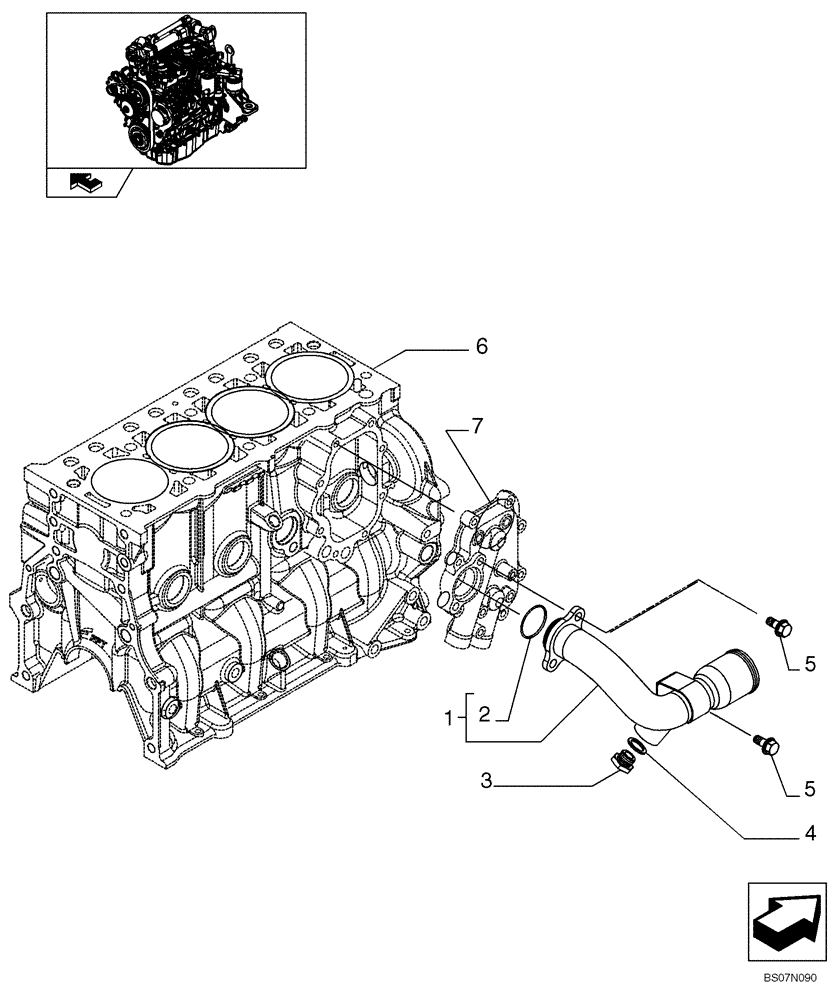

Запчасти Case 420CT (02-34) - PIPING - ENGINE COOLING SYSTEM (87546691) (02) - ENGINE

1

504182961

PIPE

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D. 31,34 x 3,53 mm

1шт.

3

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

4

4858609

WASHER,Brass

D. 16 x 22 mm SP=1,5 mm

1шт.

5

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1,25 x 18 mm

1шт.

4858609

WASHER,Brass

1шт.

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

6

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

7

REF

INSTRUCTION

See Figure 02-20, Heat Exchanger

1шт.
