Запчасти Case 420CT (02-30) - FILTER ENGINE OIL (87546691) (02) - ENGINE

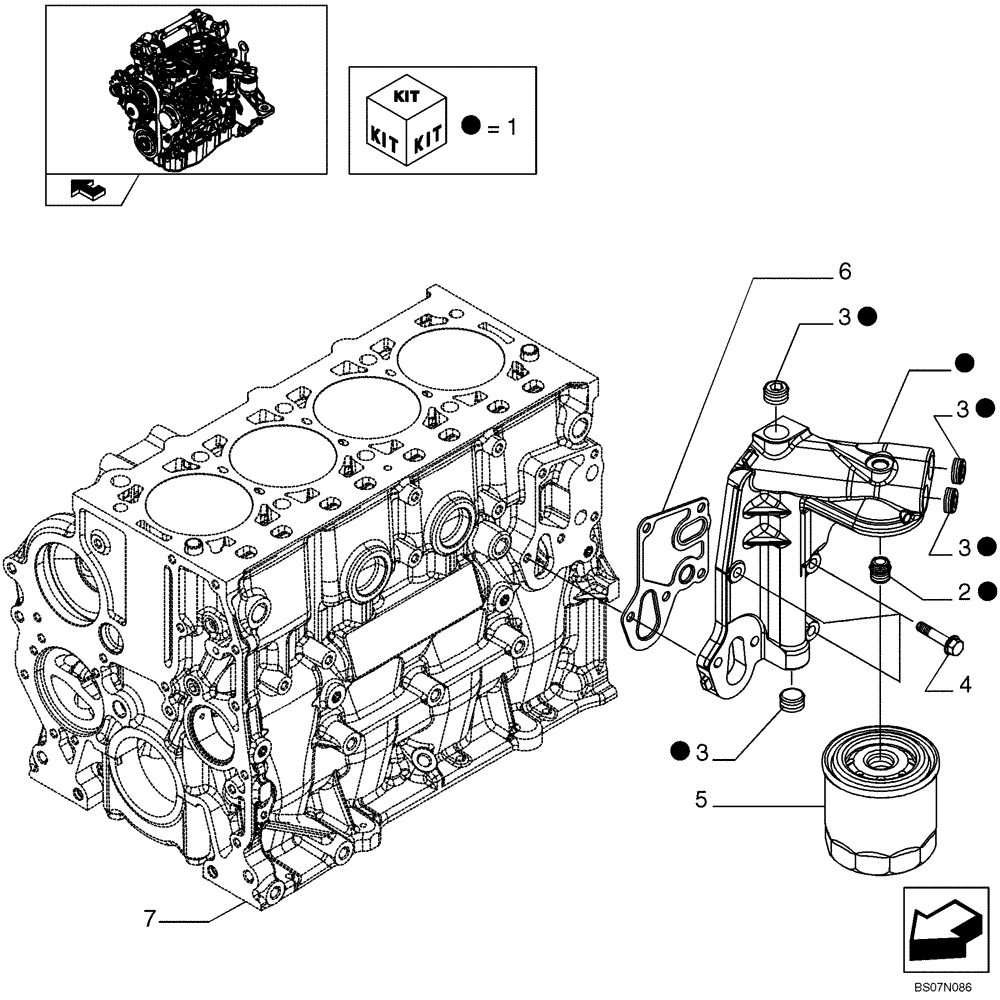

Схема запчастей Case 420CT - (02-30) - FILTER ENGINE OIL (87546691) (02) - ENGINE
3
6
4
3
1
3
3
2
5
7

Артикул

Название

Примечание

Количество

1

504271928

FILTER HEAD

Head Assembly, Incl 2 - 4

1шт.

Does Not Include Engine Oil Filter

1шт.

2

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

3

504113860

PLUG,Threaded, 1/2"

4шт.

4

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

2шт.

5

87679598

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

6

504235816

GASKET

1шт.

7

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.

Выбрано товаров: 8
