Запчасти Case 420CT (02-23) - CONNECTING ROD (87546691) (02) - ENGINE

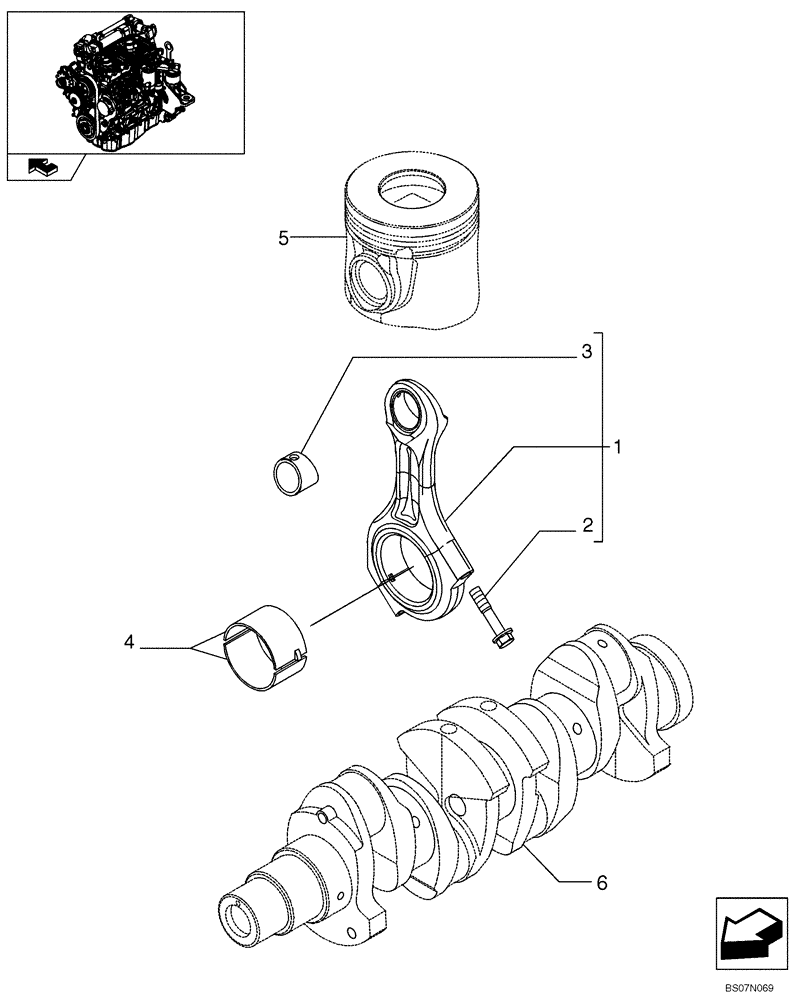

Схема запчастей Case 420CT - (02-23) - CONNECTING ROD (87546691) (02) - ENGINE
6
2
4
3
1
5

Артикул

Название

Примечание

Количество

1

504113130

CONNECTING ROD

Rod, Connecting

4шт.

2

504015229

SCREW,M11 x 1.25 x 51mm

Screw, M11X1,25X51 mm

8шт.

3

NSS

NOT SOLD SEPARAT

Screw

4шт.

4

2995577

SET OF CONN ROD BRGS STD

Set Of Connecting Rod BRGS U/S, -0.000

4шт.

4

2995578

BEARING SET,-0.254

Set Of Connecting Rod BRGS U/S, -2,254

4шт.

4

2995579

BEARING SET,Conrod bearing -0.508

Set Of Connecting Rod BRGS U/S, -5,508

4шт.

5

REF

INSTRUCTION

See Figure 02-24, Piston - Engine

1шт.

6

REF

INSTRUCTION

See Figure 02-22, Crankshaft

1шт.

Выбрано товаров: 8
