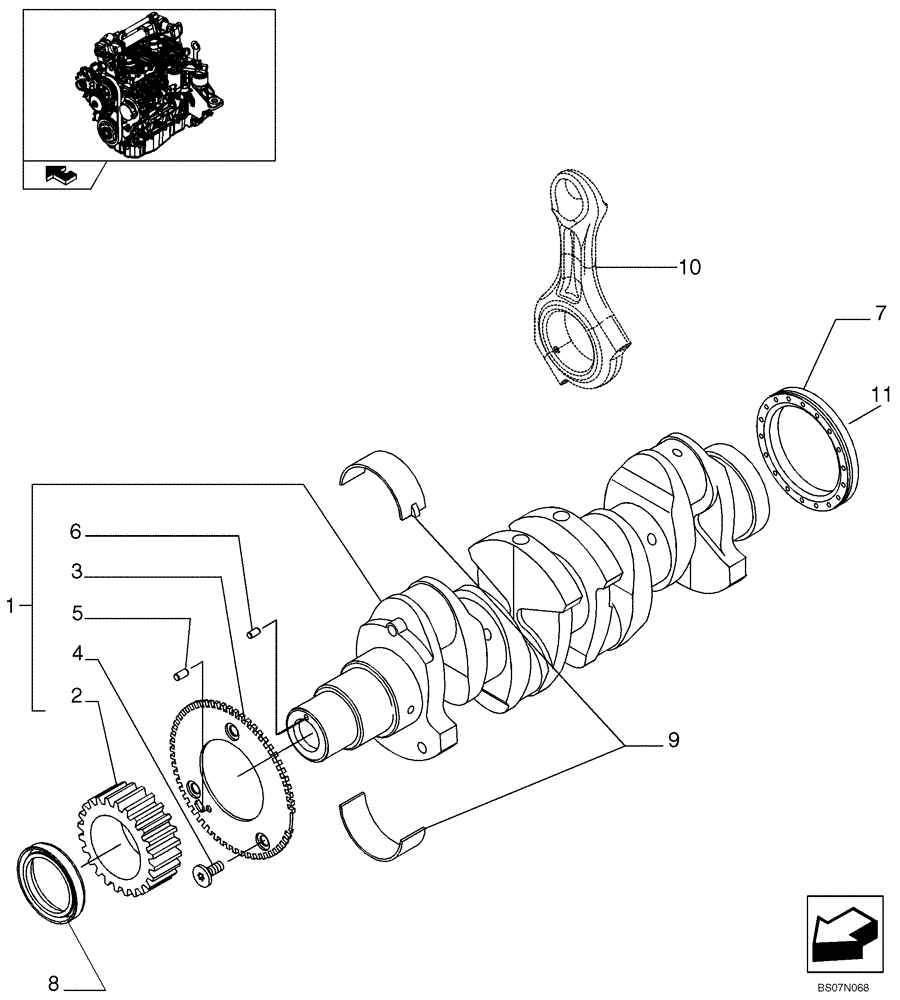

Запчасти Case 420CT (02-22) - CRANKSHAFT (87546691) (02) - ENGINE

1

504213230

CRANKSHAFT

1шт.

1

504276025R

REMAN-CRANKSHAFT

Reman Crankshaft Comes With The Proper Bearings To Install The Reman Crankshaft

1шт.

1

504276025C

CORE-CRANKSHAFT

Return Number

1шт.

2

504240426

GEAR

1шт.

3

504023782

GEAR

1шт.

4

500374310

SCREW,Cyl Head, M6 x 1

M6X1

3шт.

5

504006981

COTTER PIN,5.5mm OD

D. 5,5 mm

1шт.

6

17236324

SPLIT PIN,4mm Dia

1шт.

7

504180969

SHAFT SEAL

1шт.

8

504056152

SEAL

1шт.

9

2995574

SET OF STD MAIN BRGS

-0,0

1шт.

9

2995575

SET OF MAIN BRGS-.25

-0,2

1шт.

9

2995576

SET OF MAIN BRGS -

-0,5

1шт.

10

REF

INSTRUCTION

See Figure 02-23, Connecting Rod

1шт.

11

REF

INSTRUCTION

See Figure 02-25, Engine, Flywheel

1шт.
