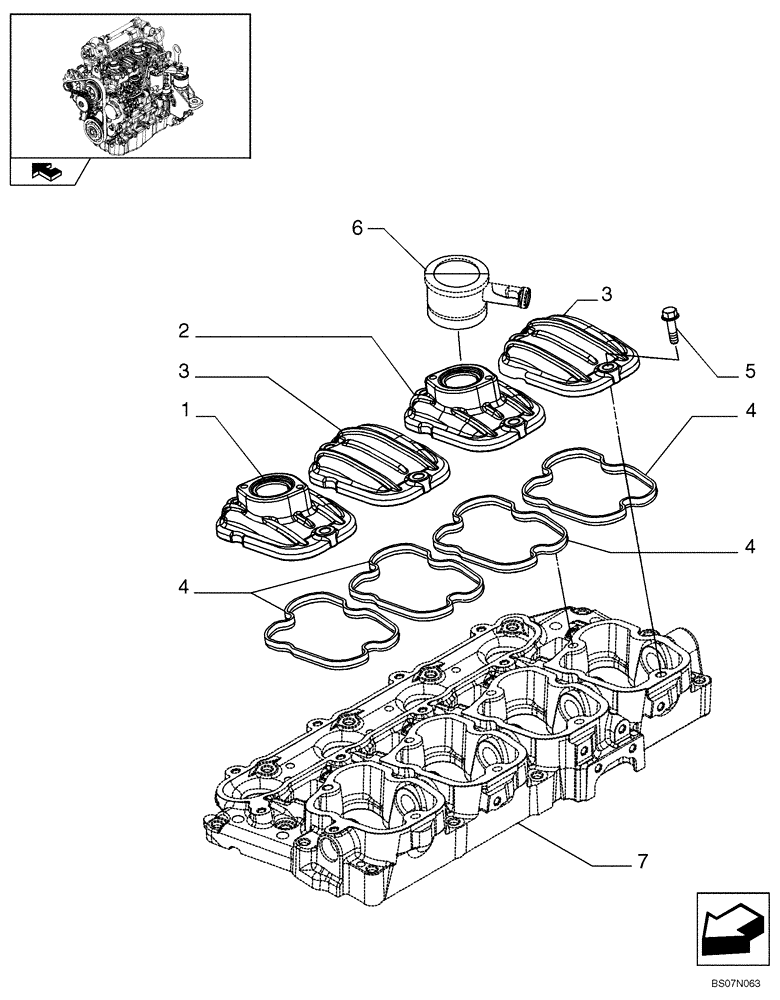

Запчасти Case 420CT (02-17) - CYLINDER HEAD COVERS (87546691) (02) - ENGINE

1

504245566

VALVE COVER

Cover, Valve

1шт.

2

504225812

VALVE COVER

Cover, Valve

1шт.

3

504221916

VALVE COVER

Cover, Valve

2шт.

4

504173590

GASKET

Gasket

4шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

M8X30 mm

8шт.

6

REF

INSTRUCTION

See Figure 02-15, Engine Breathers

1шт.

7

REF

INSTRUCTION

See Figure 02-18, Rocker Shaft

1шт.
