Запчасти Case 420CT (09-59) - SOUNDPROOFING - SEAL; IF USED (09) - CHASSIS

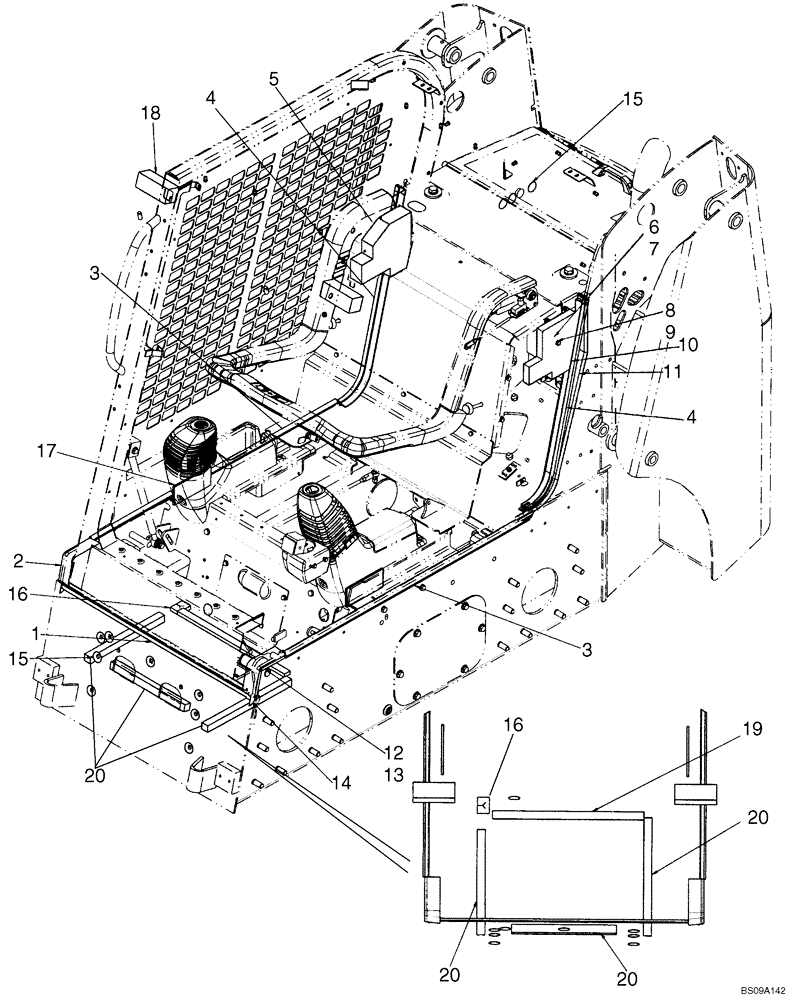

Схема запчастей Case 420CT - (09-59) - SOUNDPROOFING - SEAL; IF USED (09) - CHASSIS
11
3
18
20
17
19
6
20
15
12
14
1
13
9
5
20
2
16
16
15
20
8
3
4
10
7
4

Артикул

Название

Примечание

Количество

1

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate Seal, 844mm (33 1/4 in.)

1шт.

2

87719784

FOAM INSULATION

Seal, Pivot RH; If Used

1шт.

3

87719782

FOAM INSULATION

Seal, Joggle; If Used

2шт.

3

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Seal, Side Screen

2шт.

4

87719792

SEALING STRIP,39.3mm W x 783.3mm L x 2.2mm Thk

Seal, Rear Cab; If Used

2шт.

5

87714956

FOAM INSULATION

Pad, ROPS RH; If Used

1шт.

6

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

Use With Ref 6 - 10

1шт.

7

9628098

NUT,M8 x 1.25, Cl 10

Use With Ref 6 - 10

1шт.

8

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

Use With Ref 6 - 10

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Use With Ref 6 - 10

1шт.

10

87714955

FOAM INSULATION

Pad, ROPS LH; If Used

1шт.

11

394745A2

SEAL,800mm L

Seal, ROPS Wing

1шт.

12

87719789

SEAL

Seal, Pivot LH; If Used

1шт.

13

414010A1

PROTECTION STRIP

1шт.

14

394748A1

INSULATION

1-2шт.

15

299274A2

COVER,35mm OD

35mm Dia Lexan

6-12шт.

15a

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia Lexan, Gray; Not Illustrated

4шт.

16

87729517

SEALING STRIP

Foam, Aux And Throttle

1шт.

17

87729519

SEAL

Foam, Side Consoles; If Used

2шт.

18

87729516

FOAM INSULATION

Foam, Crushable

2шт.

19

291308

SEALING STRIP,0.75" W x 0.5" Thick

1.56 ft; Rev C 0.5 ft Used

1шт.

20

WIC291355

PAD

Sealing Strip, 3.37 ft; If Used

1шт.

Выбрано товаров: 22
