Запчасти Case 420CT (09-57) - RADIO - SPEAKERS AND ANTENNA (09) - CHASSIS

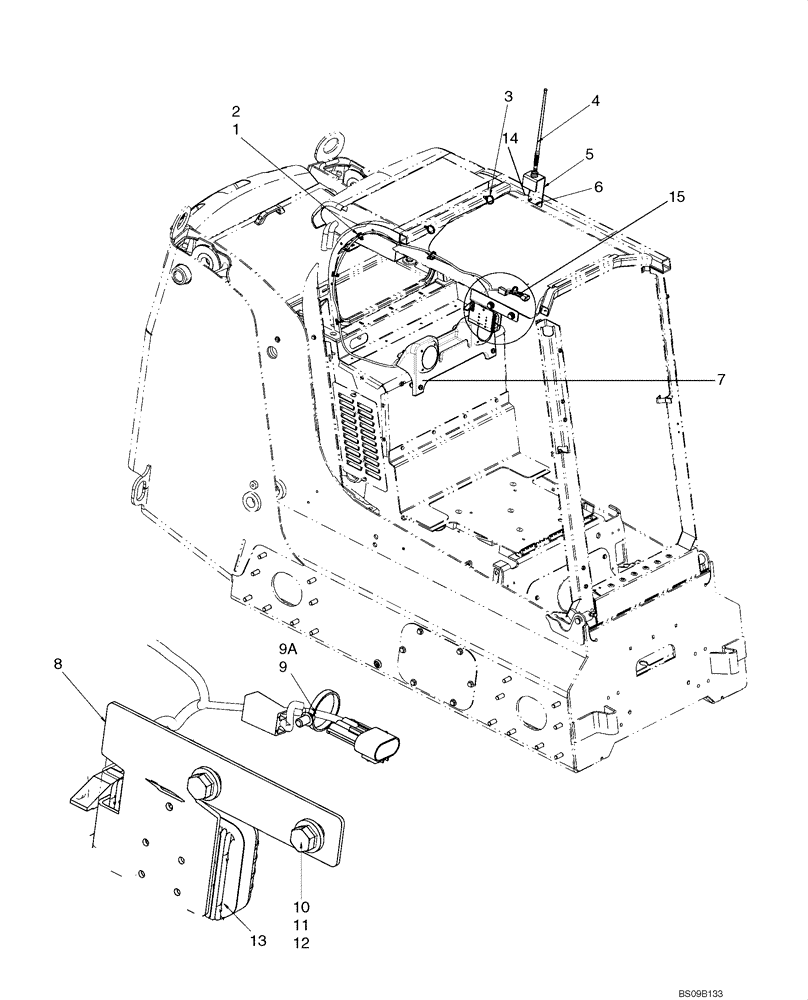

Схема запчастей Case 420CT - (09-57) - RADIO - SPEAKERS AND ANTENNA (09) - CHASSIS
7
13
10
12
6
14
9
11
3
4
2
5
9a
1
15
8

Артикул

Название

Примечание

Количество

87652337

SERVICE KIT

Kit, Radio; Incl 1 - 15

1шт.

1

87642915

CABLE TIE,198mm L

CABLE STRAP

3шт.

2

87642914

BASE

3шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

4шт.

4

87668735

ANTENNA

Antenna, Rubber Mast, Includes Cable (NSS)

1шт.

5

87682711

BRACKET

Antenna, Bracket

1шт.

6

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

Screw, 1/4-20 X 3/4 Hex Head

2шт.

7

REF

INSTRUCTION

Speakers And Housing; See Fig 09-46

1шт.

7

87672286

HOUSING

Speaker

1шт.

8

87725303

BRACKET

Radio Mounting Bracket; If Used

1шт.

8

87495217

BRACKET

Radio Mounting Bracket

1шт.

9

87658636

HARNESS

Radio Harness; Incl 9A

1шт.

9a

A149796

FUSE

Fuse, 3A

1шт.

10

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1-2шт.

11

412672

NUT,Hex, M12 x 1.75, Cl 10

1-2шт.

12

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2-4шт.

13

NSS

NOT SOLD SEPARAT

Mini Radio, AM/FM/WX

1шт.

14

87723416

GROMMET

25.4 OD x 5.3 ID x 8.0; Do Not Use GrommetWhen Radio Option Is Combined With Rotating Beacon Option; If Used

1шт.

14

87497179

GROMMET

25.4 OD x 5.25 ID x 8.0

1шт.

15

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia, Lexan

1шт.

Выбрано товаров: 20
