Запчасти Case 420CT (02-10) - ENGINE ASSY (87546691) (02) - ENGINE

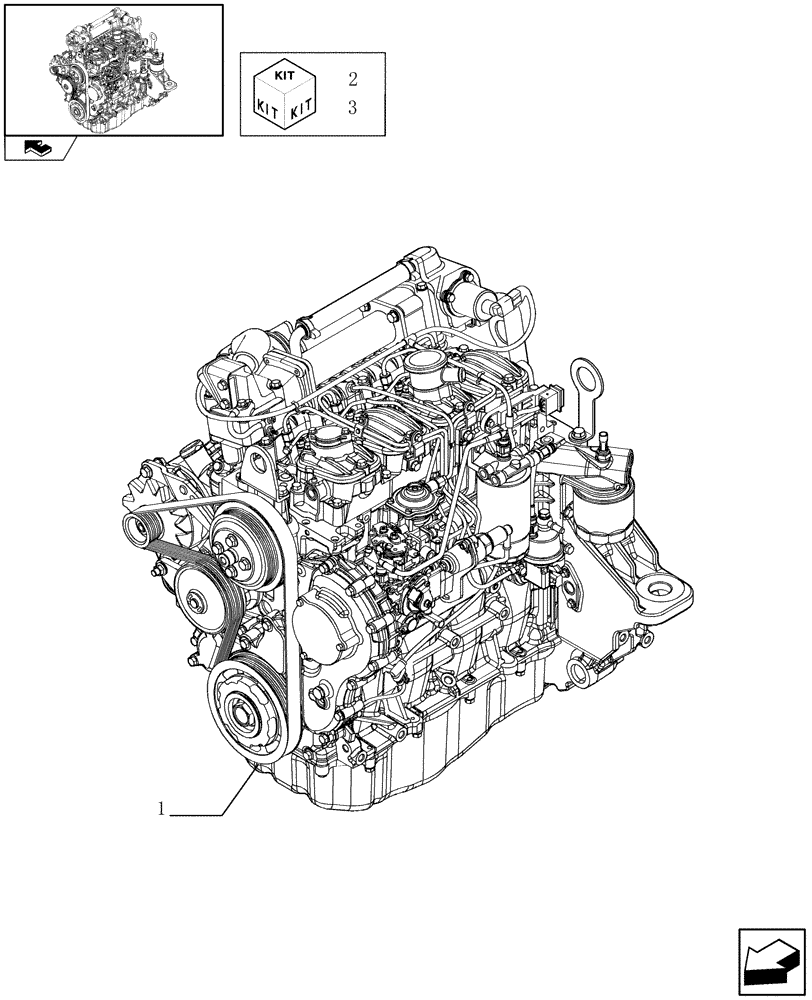

Схема запчастей Case 420CT - (02-10) - ENGINE ASSY (87546691) (02) - ENGINE
1
2
home
3

Артикул

Название

Примечание

Количество

1

87546691

ENGINE

55 kW, 73.7 HP; 296 mm Fan Center; Incl. Figures 02-10 - 02-39, 03-03 - 03-10, 02-02, 04-03; Order Alternater (Figure 04-02) And Belt (Figure 02-26) Separately.

1шт.

47456817R

REMAN-BASIC ENGINE

420 (TIER 3) ( 420NA N7M466710), 420CT (SERIES 3) (ASN N7M455401) Both (1/08-3/11), Reman For New P/N 87546691

1шт.

47456817C

CORE-BASIC ENGINE

Return Number

1шт.

87546691ER

REMAN-REPLACEMENT EN

420 Tier 3, ASN N7M466710, 420CT Series 3, ASN N7M455401, F5C, 4 Cyl. 2 v, N.A. Only

1шт.

87546691EPAC

CORE-EPA ENGINE

Return Number, For N.A. Only

1шт.

1

87546691R

REMAN-REPLACEMENT EN

ENGINE (EXCHANGE) F5C Replacement Engine - For N.A. Only

1шт.

1

87546691C

CORE-ENGINE

F5C Replacement Engine - For N.A. Only

1шт.

8099019

SHORT ENGINE

1шт.

1

8099019ER

REMAN-SHORT ENGINE

420 Tier 3, ASN N7M466710, 420CT Series 3, ASN N7M455401, F5C, 4 Cyl. 2 v, N.A. Only

1шт.

1

8099019EPAC

CORE-EPA ENGINE

Return Number

1шт.

8099019R

REMAN-SHORT ENGINE

420 TIER 3 N7M466710 (1/08-),420CT ASN N7M455401 (1/08-3/11)

1шт.

8099019C

CORE-SHORT ENGINE

Return Number

1шт.

2

8097550

ENGINE GASKET KIT

Kit, Engine Overhaul

1шт.

3

8097551

KIT, ENGINE TOP GASK

Kit, Engine Top Gaskets

1шт.

Выбрано товаров: 14
