Запчасти Case 420CT (09-54) - REAR WINDOW - HEAT AND AIR CONDITIONING (09) - CHASSIS

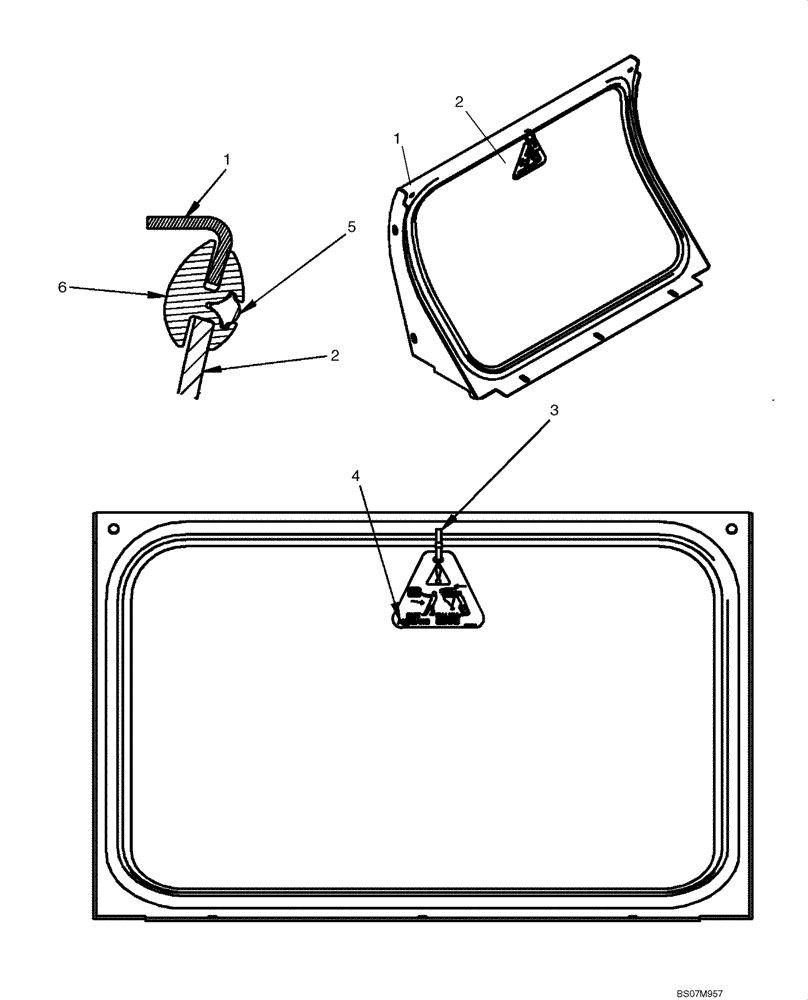

Схема запчастей Case 420CT - (09-54) - REAR WINDOW - HEAT AND AIR CONDITIONING (09) - CHASSIS
3
1
2
5
4
1
6
2

Артикул

Название

Примечание

Количество

87705429

GLASS

Rear HVAC Window Assembly; Incl 1 - 6

1шт.

1

87705428

WINDOW FRAME

Frame, Rear HVAC Window

1шт.

2

87641703

WINDOW

Glass, Rear HVAC Window

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

4

87026871

PLASTIC SIGN

Exit Tag

1шт.

5

87643808

LOCK KEY

Key, Locking

1шт.

6

87641704

PLASTIC

Seal, H Channel HVAC Window

1шт.

Выбрано товаров: 7
