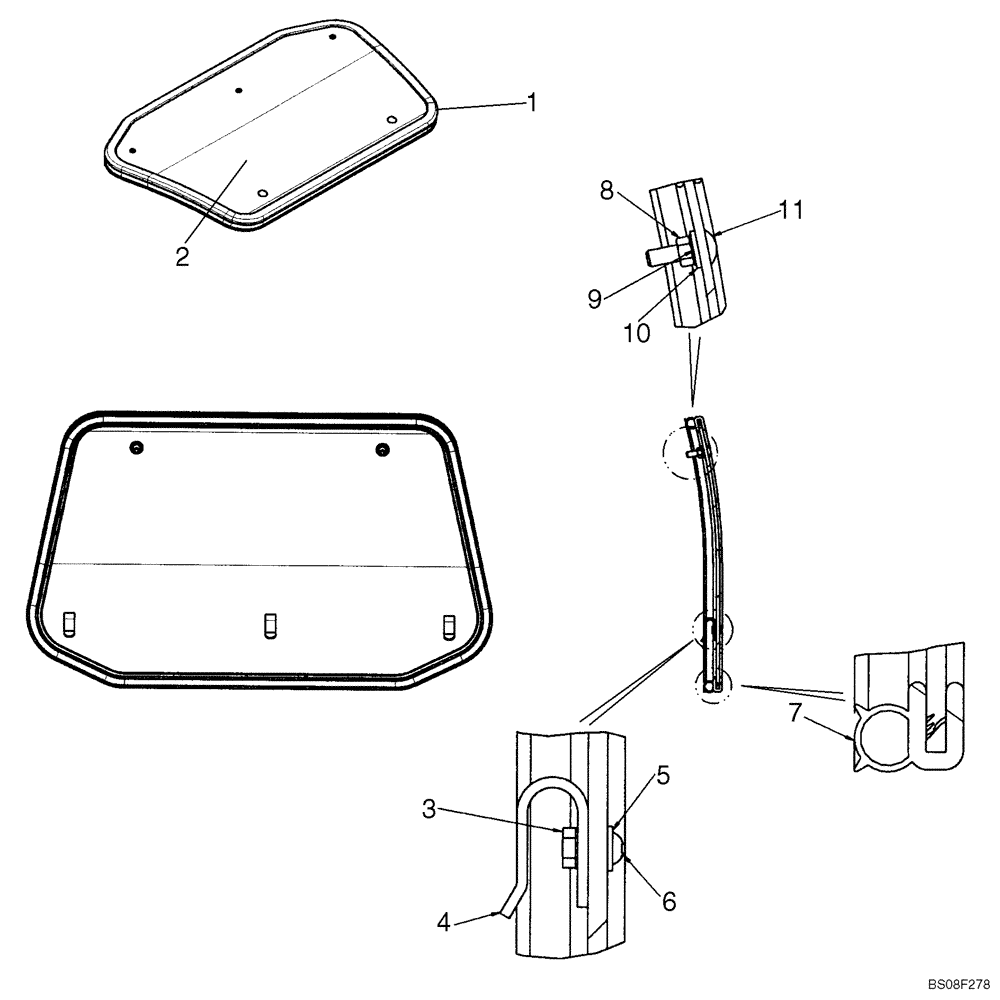

Запчасти Case 420CT (09-49B) - TOP WINDOW ASSY; IF USED (09) - CHASSIS

1

87757107

GLASS

Window Assy, Skylight; Incl. 2 - 11 and Adhesive

1шт.

2

87757106

GLASS

Window

1шт.

3

281018

Nut; KEPS 8-32 EXT T Washer ZND

NUT

3шт.

4

87750012

CLIP

Clip

3шт.

5

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

3шт.

6

81822758

SCREW,Pan, #8 - 32 x 1/2"

3шт.

7

87479196

SEAL,1997mm L

Bulb Seal

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

3шт.

9

280278

LOCK WASHER,Ext Tooth, 5/16"

2шт.

10

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

11

87477164

CARRIAGE BOLT

.312 x 1.25 Full GR5

2шт.

87301336

1mL Adhesive GE RTV-108 Silicone Clear; 0.1 mL Required

1шт.
