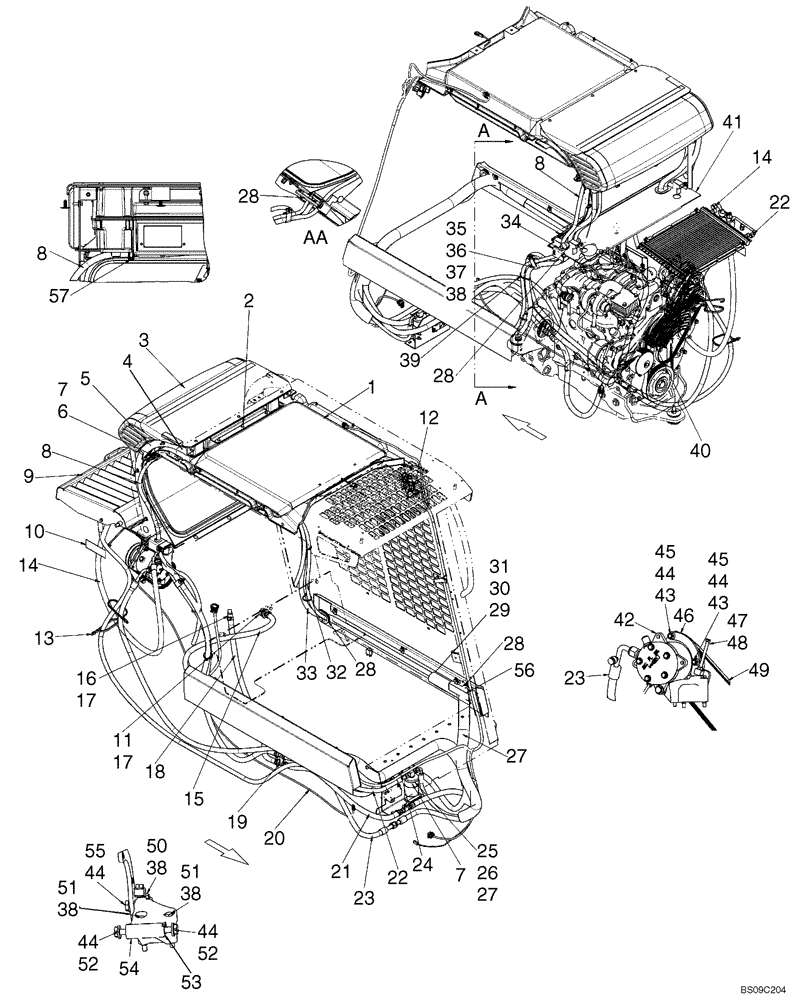

Запчасти Case 420CT (09-37) - AIR CONDITIONING SYSTEM (09) - CHASSIS

87638450

SERVICE KIT

Kit, Deluxe Heater And Air Conditioning; Incl 1 - 51

1шт.

1

REF

INSTRUCTION

Heater System; See Fig 09-35

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

5шт.

3

84129073

AIR CONDITIONER

Heat And Air Conditioning Unit; Incl 87653393 And 84146888

1шт.

3

87653393

AIR CONDITIONER,Assembly

Heat And Air Conditioning Unit; See Fig 09-55; If Used

1шт.

4

87450833

TAPE

If Used

2шт.

5

291308

SEALING STRIP,0.75" W x 0.5" Thick

580mm (22 13/16 in.); If Used

1шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

7

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

8

87691473

A/C HOSE

Tube, A/C Drain

2шт.

9

REF

INSTRUCTION

Hood, Air Conditioning; See Fig 09-21

1шт.

10

86639409

DECAL

Decal, Air Conditioning Specifications

1шт.

11

504249332

FITTING,M35 x 1.5, 18mm

Hose, use with Gasket 99469380

1шт.

12

87555249

SWITCH

A/C Switch

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

14

87452009

A/C HOSE

Hose, A/C 1701mm (67 in.)

1шт.

15

87717216

HEATER HOSE,15.75" mm ID, 1565.00 mm, SAE 20R3

1шт.

16

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

If Used

1шт.

17

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

5-6шт.

18

87717213

HEATER HOSE,15.75" mm ID, 1035.00 mm, SAE 20R3

1шт.

19

87610315

TUBE,15.9 mm OD x 79.4, 56.4 mm L

Tube, H Fitting

1шт.

20

87445908

HARNESS

Harness, Compressor

1шт.

21

87717212

HEATER HOSE,15.75" mm ID, 760.00 mm, SAE 20R3

2шт.

22

87717220

HOSE

Hose, A/C Liquid

1шт.

23

87436118

A/C HOSE

Hose, A/C Suction 2590mm (102 in.)

1шт.

24

86625515

PRESSURE SWITCH

Switch, A/C Pressure

1шт.

25

86625481

RECEIVER-DRYER

1шт.

26

87437501

BRACKET

1шт.

27

87441006

TUBE,4.6mm ID x 1350mm L

Hose, 1350mm (53 5/32 in.)

1шт.

28

87439844

GUARD

ROPS Trim

3-4шт.

29

87703555

COVER

Hose Cover, LH; If Used

1шт.

29

84129088

COVER

Hose Cover, LH, Gray; If Used

1шт.

30

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

If Used

3шт.

31

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

3шт.

32

87691471

HOSE,7.94mm ID x 3450mm L

Hose, A/C Liquid 3450mm (135 13/16 in.)

1шт.

33

87691470

HOSE,12.7mm ID x 3500mm L

Hose, A/C Suction 3500mm (137 13/16 in.)

1шт.

34

87307909

GROMMET

2шт.

35

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

If Used

1шт.

36

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

37

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

38

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

40

87594971

GUARD

Fan Guard, A/C

1шт.

41

87716582

INSULATING PANEL

Heat Shield Extension; If Used

1шт.

41

87743315

INSULATING PANEL

Heat Shield Extension

1шт.

42

87649991

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

87649991R

REMAN-A/C COMPRESSOR,12V, W/ Clutch, W/ Pulley

420 (TIER 3, 420NA N7M466710 (1/08-), 420CT (SERIES 3, ASN N7M455401 (1/08-3/11)

1шт.

87649991C

CORE-COMPRESSOR

Return Number

1шт.

43

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

44

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

5шт.

45

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

46

87711926

BRACKET

1шт.

47

87649979

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

48

9706690

NUT,M8 x 1.25, Cl 8

1шт.

49

87625599

V-BELT,14.24 mm W x 927.00 mm L

1шт.

50

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

1шт.

51

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

52

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

53

87622384

BUSHING,11mm ID x 20mm OD x 28mm L

1шт.

54

87649945

BRACKET

Compressor Bracket

1шт.

55

87032782

BOLT,Hex, M10 x 30mm, Cl 8.8

If Used

1шт.

55

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

56

87729516

FOAM INSULATION

1шт.

57

87584302

CLAMP,16mm - 19mm, Spring

18mm

2шт.
