Запчасти Case 420CT (02-07) - ENGINE - DIPSTICK, OIL FILL (02) - ENGINE

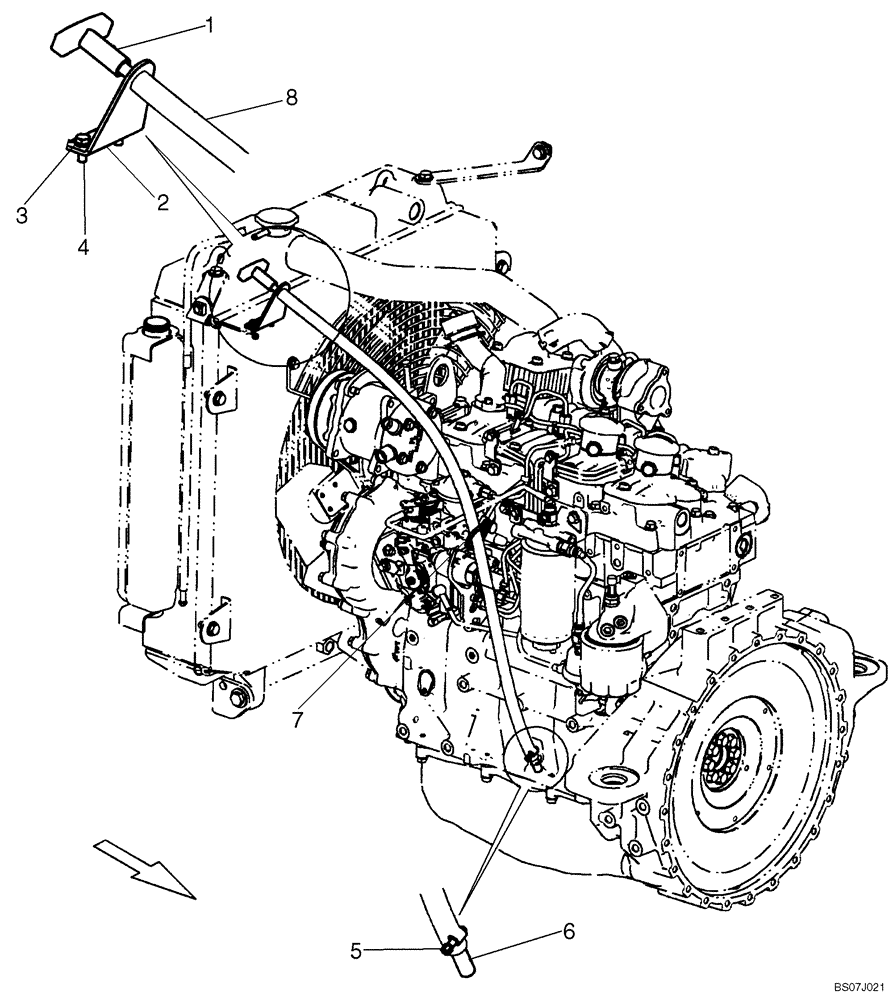

Схема запчастей Case 420CT - (02-07) - ENGINE - DIPSTICK, OIL FILL (02) - ENGINE
3
5
1
7
8
4
6
2

Артикул

Название

Примечание

Количество

1

87566701

DIPSTICK,1106mm L

Dipstick, Engine Oil

1шт.

2

87626718

BRACKET

Dipstick Tube Mounting Bracket

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

86624181

WASHER,M6

No Longer Used, Order 86624184

2шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

No Longer Used, Order 120103

2шт.

5

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

6

87578147

ADAPTER

Adapter, Block To Dipstick

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

8

87669375

TUBE,12.7mm OD x 944mm L

Dipstick

1шт.

Выбрано товаров: 10
