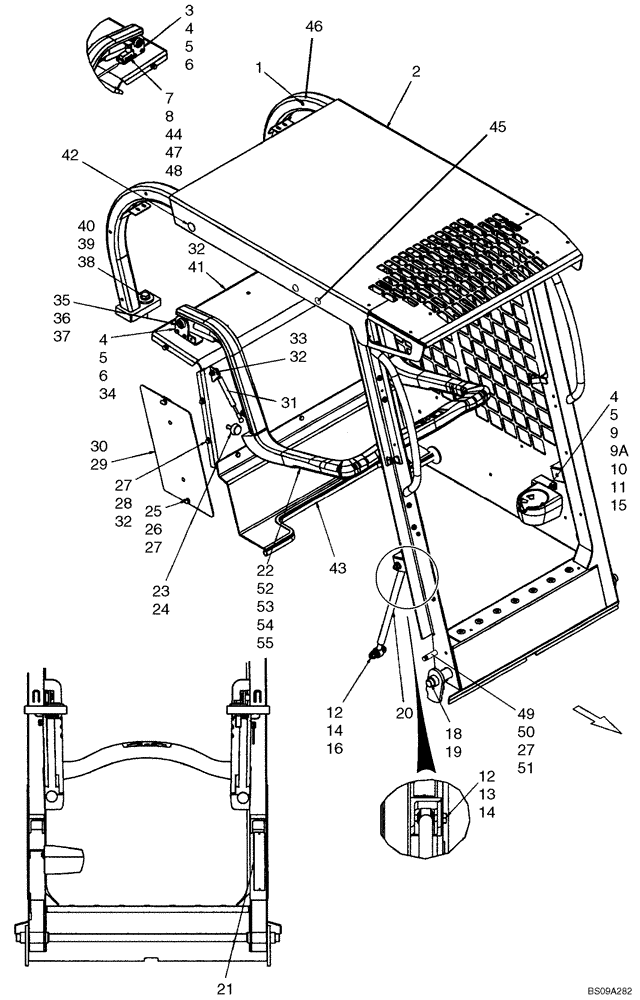

Запчасти Case 420CT (09-25) - CAB - FRAME AND SEAT BAR (09) - CHASSIS

1

419434A1

INSERT

Threaded Insert, M6

10-16шт.

2

87635242

SERVICE KIT

Cab, ROPS; Incl ROPS Structure, (1) Decal - Exiting, (1) Decal - Warning, General Instructions, (1) ROPS Model And Approval Plate

1шт.

3

87645119

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, LH; If Used

1шт.

3

87473780

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, LH; If Used

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

4-6шт.

5

86511444

FLANGE NUT,Hex, M6 x 1

4-6шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

87051110

DOOR SWITCH

Seat Bar Switch

1шт.

8

H435814

U-BOLT

If Used

1шт.

8

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

#6-32 x 1.375 Cst

2шт.

9

87672170

MOLDING

Cup Holder

1шт.

9a

304061A1

BUMPER,Rubber

Rubber Bumper

4шт.

10

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

If Used

2шт.

10

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

If Used

2шт.

11

87016587

WASHER,0.27" ID x 0.62" OD x 0.05" Thk

2шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

2-4шт.

13

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

If Used

2шт.

13

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

If Used

1шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4-8шт.

15

87703526

BRACKET

If Used

1шт.

16

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1-2шт.

17

254697A1

SPACER

Pivot Spacer

1-2шт.

18

87629753

PIN,25.4mm OD x 871mm L

1шт.

19

827695C1

CIRCLIP

2шт.

20

282002A2

GAS STRUT

ROPS Pivot Assist

1шт.

21

NSS

NOT SOLD SEPARAT

ROPS Plate, Model And Approval

1шт.

22

REF

INSTRUCTION

Seat Restraint; See Fig. 09-39; If Used

1шт.

23

87639912

KNOB

Knob

2шт.

24

87639914

STOP

Seat Bar Stop

2шт.

25

442856A1

SEALING WASHER,7.11mm ID x 12.7mm OD x 0.79mm Thk

2-4шт.

26

408117A2

THUMB SCREW,M8 x 1.25 x 15mm

Thumb Screw, M8

2-4шт.

27

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

9-11шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If Used

6шт.

28

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

If Used

6шт.

29

86625127

PLUG,Dome, .375" hole, Nylon

4шт.

30

87460732

PANEL

Solid Panel; If Used

1-2шт.

30

87694082

PANEL

Perforated Panel; If Used

2шт.

31

87639899

CYLINDER

Seat Bar Gas Strut, 229mm (9 in.) Extended Length; If Used

1шт.

31

87639895

STRUT

Seat Bar Gas Strut, 244mm (9 5/8 in.) Extended Length; If Used

1шт.

32

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

11шт.

33

189609A1

BALL STUD,M8 x 1.25

Metric Ball Stud, M8 X 1.25 Thd

2шт.

34

87645115

PIVOT

Seat Bar Pivot, RH; If Used

1шт.

34

87473782

BRACKET, PIVOT

PIVOT BRACKET Seat Bar Pivot, RH; If Used

1шт.

35

87620895

BUSHING,12.98mm ID x 19.11mm OD x 23.1mm L

2шт.

36

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

37

D143415

SNAP RING,0.50” ID, Klipring

2шт.

38

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

39

391703A2

WASHER,16.67mm ID x 55mm OD x 6.35mm Thk

2шт.

40

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

41

87668682

SHIELD

Shield, Gray; If Used

1шт.

41

87473785

PROTECTION PLATE

Shield, Gray; If Used

1шт.

42

86625129

PLUG,Dome, 1" Hole, Nylon

If Used

2шт.

42

87499075

DECAL

If Used

2шт.

43

87713387

RUBBER SEAL,940mm L

Rops, Floor Seal

2шт.

44

280859

NUT,Keps, #6-32

2шт.

45

414635A1

COVER,25.4mm OD x 0.51mm Thk

4-16шт.

46

87436247

THREADED INSERT

6шт.

47

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

6-32 x 1.375

2шт.

48

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

49

87758778

SPACER

Spacer Rops Latch

1шт.

50

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

51

9628098

NUT,M8 x 1.25, Cl 10

1шт.

52

87619939

ARM

Upper Lap Bar LH

1шт.

53

87619938

ARM

Upper Lap Bar RH

1шт.

54

87619935

BAR

Lower Section Lap Bar

1шт.

55

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.
