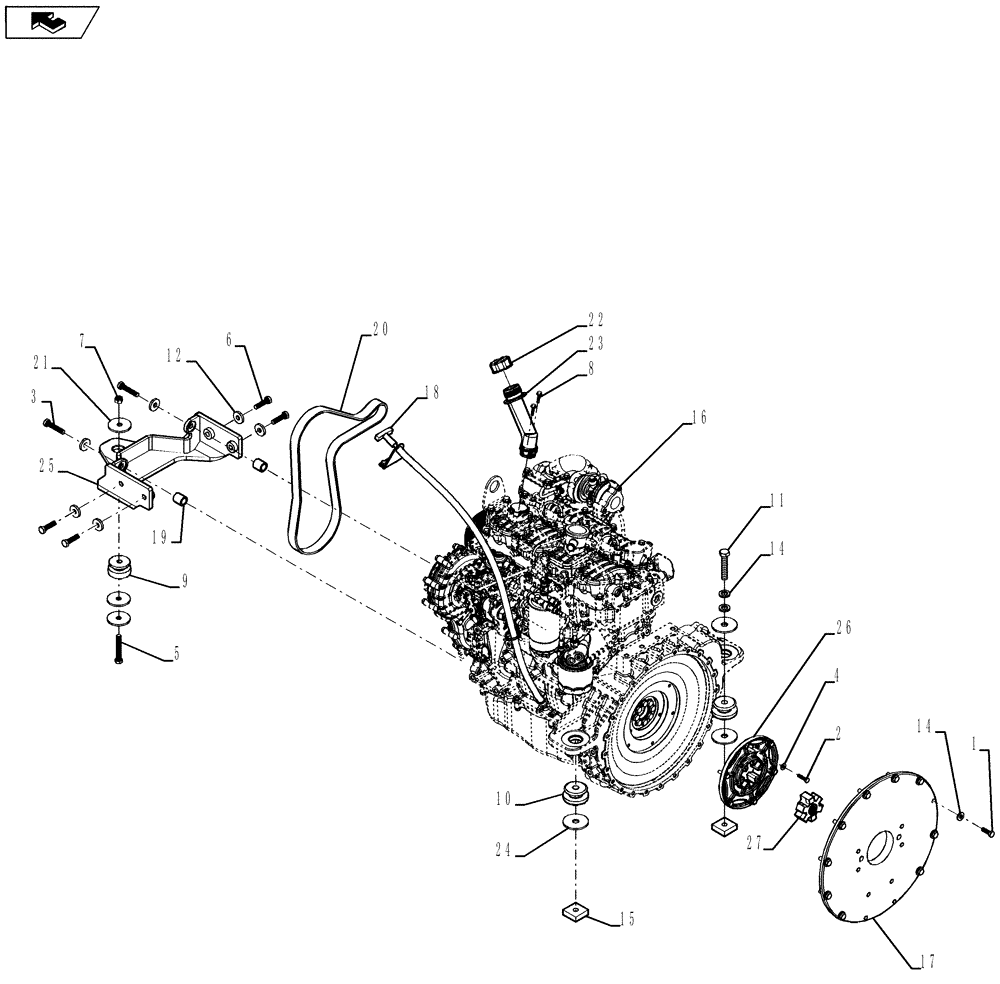

Запчасти Case 420CT (02-05) - ENGINE - MOUNTING AND THROTTLE, SERIES 3 (02) - ENGINE

1

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

2

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

3

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

6

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

7

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

8

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

9

86541277

INSULATOR

1шт.

10

86550698

INSULATOR

Mount ISO

2шт.

11

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

12

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

13

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

15

87535743

NUT

2шт.

16

87546691

ENGINE

FPT F5C 53KW 296 Fan

1шт.

16

87546691ER

REMAN-REPLACEMENT EN

420 Tier 3, ASN N7M466710, 420CT Series 3, ASN N7M455401, F5C, 4 Cyl. 2 v, N.A. Only

1шт.

87546691EPAC

CORE-EPA ENGINE

Return Number, For N.A. Only

1шт.

16

87546691R

REMAN-REPLACEMENT EN

ENGINE (EXCHANGE) F5C Replacement Engine - For N.A. Only

1шт.

87546691C

CORE-ENGINE

Return Number

1шт.

16

47456817R

REMAN-BASIC ENGINE

420 (TIER 3) ( 420NA N7M466710), 420CT (SERIES 3) (ASN N7M455401) Both (1/08-3/11), Reman For New P/N 87546691

1шт.

47456817C

CORE-BASIC ENGINE

Return Number

1шт.

16

8099018R

REMAN-SHORT ENGINE

1шт.

8099018C

CORE-SHORT ENGINE

Return Number

1шт.

17

87547003

PLATE

Pump Mounting

1шт.

18

REF

INSTRUCTION

Remote Dipstick; See Figure 02-07

1шт.

19

87578141

SPACER

Engine Mounting Bracket

2шт.

20

87621132

V-BELT,1475mm Effective Length

1шт.

21

87639792

WASHER,0.53" ID x 2.5" OD x 0.19" Thk

Washer, .531 X 2.50 X .188

3шт.

22

87674802

CAP,7mm ID x 9mm OD x 12mm L

Oil Fill

1шт.

23

87680042

NECK FILLER

Oil Fill

1шт.

24

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer, 70mm OD

4шт.

25

87687525

BRACKET

Engine Mount, Fan Side

1шт.

26

87692685

FLEXIBLE COUPLING,215.9mm OD

Flexible

1шт.

27

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.
