Запчасти Case 420CT (09-04) - COUPLER - MECHANICAL (09) - CHASSIS

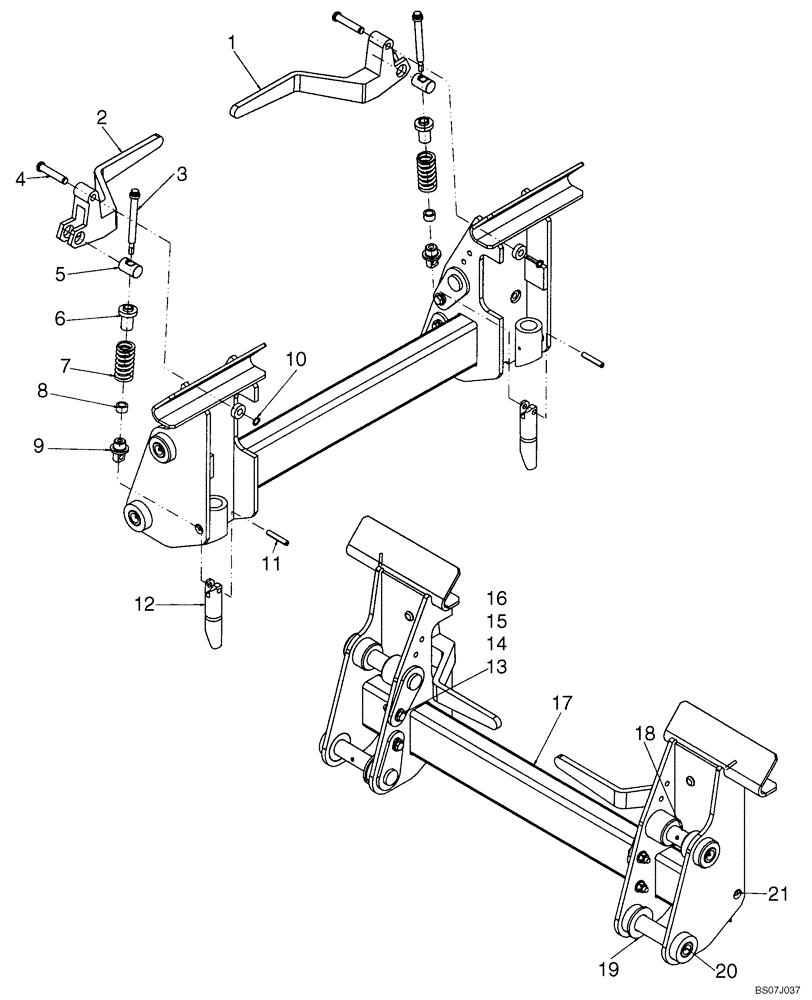

Схема запчастей Case 420CT - (09-04) - COUPLER - MECHANICAL (09) - CHASSIS
16
21
18
1
5
8
10
20
15
4
11
19
12
13
17
9
14
7
2
3
6

Артикул

Название

Примечание

Количество

1

86633195

HANDLE

Handle, LH

1шт.

2

86633196

HANDLE

Handle, RH

1шт.

3

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

CS12PT Shoulder Bolt, 1/2 X 4.0

2шт.

4

87387540

PIN,12.7mm OD x 67.55mm L

2шт.

5

9829733

PIN,25.4mm OD x 39mm L

2шт.

6

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

Spring Guide

2шт.

7

86610167

SPRING,Compression, 35.15mm OD x 101.6mm L

2шт.

8

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing Spacer

2шт.

9

87579303

PIN,34.92mm OD x 43.6mm L

Pin

2шт.

10

87612753

RETAINER,#50, 0.46", Ext

Retaining Ring, External #50 PLN

2шт.

11

86624092

PIN,9.53mm OD x 50.8mm L

2шт.

12

87413030

PIN

Latch Pin; If Used

2шт.

12

87758365

PIN,31.75mm OD x 142.3mm L

Latch Pin

2шт.

13

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

14

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

15

86512554

NUT,M10 x 1.5, Cl 10

4шт.

16

906091R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8" Pipe X 3/8" Length

4шт.

17

404599A5

FRAME,W/Coupler

1шт.

Does Not Include Pins, Handles, or Any Hardware

1шт.

18

87659406

PIN,31.75mm OD x 169.2mm L

4шт.

19

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

21

87414

LUBE NIPPLE,1/4" - 28

2шт.

Выбрано товаров: 23
