Запчасти Case 420CT (08-39[1]) - KIT, HIGH FLOW BI-DIRECTIONAL GEAR (08) - HYDRAULICS

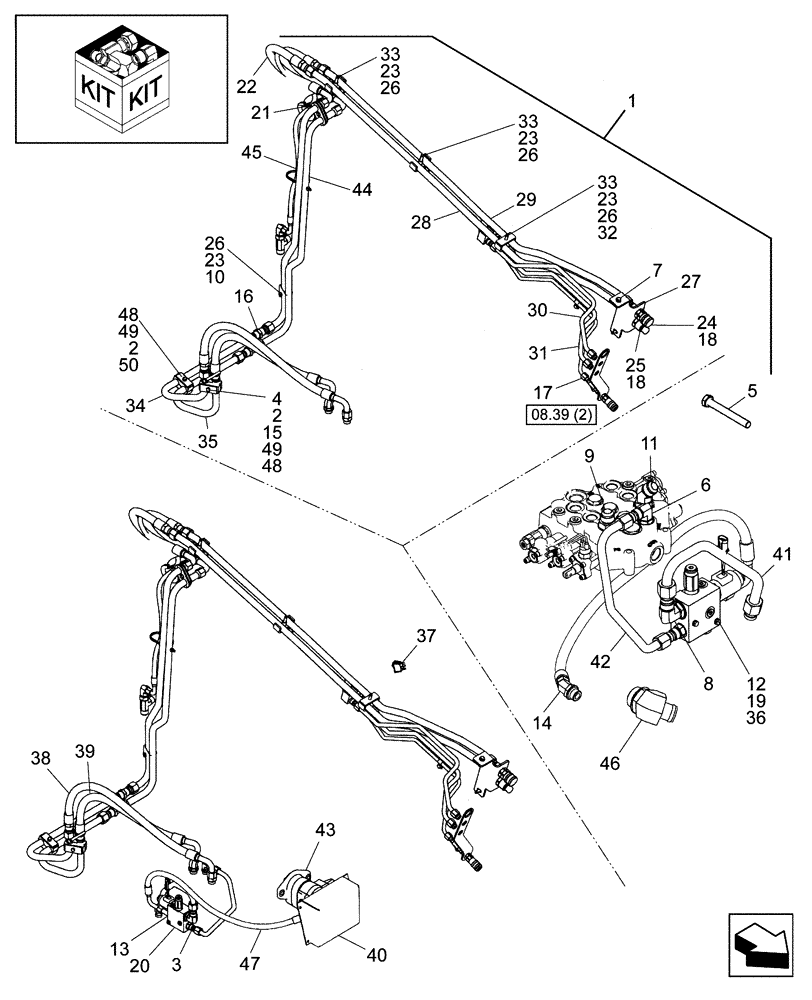

Схема запчастей Case 420CT - (08-39[1]) - KIT, HIGH FLOW BI-DIRECTIONAL GEAR (08) - HYDRAULICS
46
17
4
18
37
08.39 (2)
36
30
38
27
15
48
8
26
25
49
44
33
34
33
21
20
11
45
9
7
47
32
43
6
26
19
50
12
39
31
24
42
48
26
5
3
18
29
49
40
33
1
10
35
23
14
23
2
23
2
23
22
16
13
26
28
41

Артикул

Название

Примечание

Количество

1

84179360

KIT

High Flow Bi-Directional Gear, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

80681

LOCK WASHER,5/16"

2шт.

3

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

5

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

7

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

11

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

12

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

13

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

14

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

1шт.

15

9628098

NUT,M8 x 1.25, Cl 10

1шт.

16

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

2шт.

17

0C

ORDER COMPONENTS

Case Drain, High Flow Kit

1шт.

84177566

1шт.

18

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

87012669

VALVE

Combination

1шт.

21

87017999

SUPPORT

2шт.

22

87020048

HOSE,19.05mm ID x 675mm L

2шт.

23

87020743

BRACKET

4шт.

24

87022671

COUPLING, QUICK, FEM

1шт.

25

87022672

QUICK MALE COUPLING

1шт.

26

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

4шт.

27

87023398

BRACKET

1шт.

28

87023469

TUBE,25.40 mm OD

1шт.

29

87023470

HYD TUBE,25.40 mm OD

1шт.

30

87023471

HYD TUBE,15.88 mm OD

1шт.

31

87023472

HYD TUBE,15.88 mm OD

1шт.

32

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

33

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3шт.

34

87026695

TUBE,25.40 mm OD x 556.80, 146.80 mm L

1шт.

35

87026696

HYD TUBE,25.40 mm OD x 439.50, 190.20 mm L

1шт.

36

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

37

87414769

SWITCH

Rocker, High Flow

1шт.

38

87453999

HOSE ASSY.

High Flow

1шт.

39

87454000

HOSE ASSY.

High Flow

1шт.

40

87460011

COVER

with Heelplate

1шт.

41

87473824

HYD TUBE,19.05 mm OD

High Flow Valve Return

1шт.

42

87499842

HYD TUBE,15.9 mm OD x 336.3, 196 mm L

High Flow Supply

1шт.

43

87551795

PUMP,36 CC

DB Gear, 2.20/0.87 CID

1шт.

44

87554200

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1000.3, 338.6 mm L

High Flow Auxiliary

1шт.

45

87554226

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1027.4, 129.5 mm L

High Flow Auxiliary

1шт.

46

87599598

HYD CONNECTOR

1шт.

47

87720467

HOSE,12.7mm ID x 930mm L

High Flow Supply

1шт.

48

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

49

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

50

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

Выбрано товаров: 52
