Запчасти Case 420CT (02-03) - EXHAUST SYSTEM - ASPIRATOR; 420-BSN 413505; 420CT-BSN 414491 (02) - ENGINE

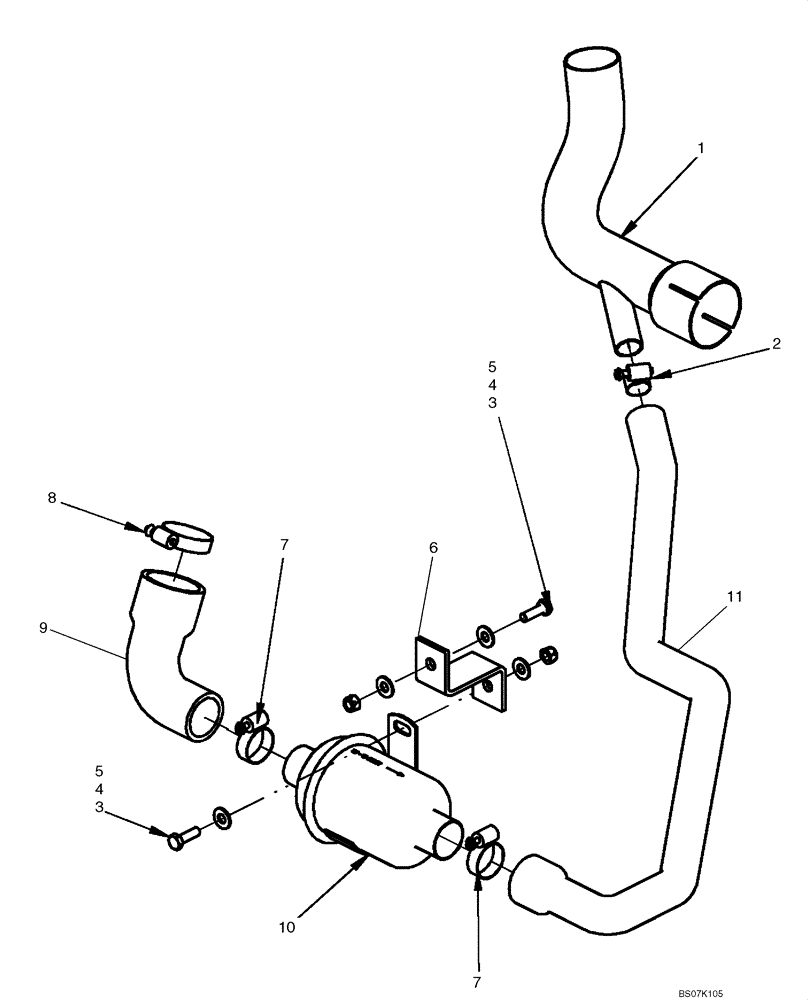

Схема запчастей Case 420CT - (02-03) - EXHAUST SYSTEM - ASPIRATOR; 420-BSN 413505; 420CT-BSN 414491 (02) - ENGINE
10
4
11
7
5
9
6
2
1
3
3
8
7
4
5

Артикул

Название

Примечание

Количество

87638321

SERVICE KIT

Kit, Aspirator; Incl 1 - 11

1шт.

1

87653891

EXHAUST SYSTEM PIPE

Exhaust Tailpipe, Aspirator

1шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

87615741

BRACKET

1шт.

7

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

8

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

If Used

1шт.

8

84137995

HOSE CLAMP,SAE #36 OD

Turnkey Grip 36

1шт.

9

87615742

HOSE

Air Cleaner To Aspirator

1шт.

10

406089A2

VALVE

Aspirator Check Valve

1шт.

11

87653892

HOSE,25.40 mm ID, 38.00 mm ID x 1300.00 mm, SAE 20R4 Class D1

Tail Pipe To Aspirator

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

1шт.

Выбрано товаров: 14
