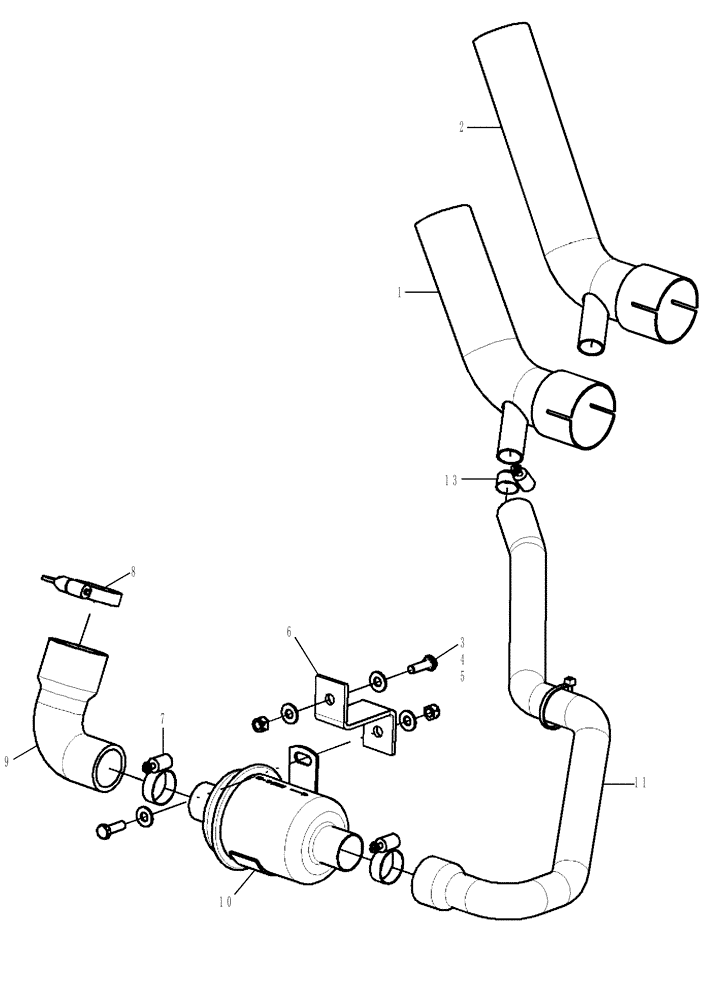

Запчасти Case 420CT (02-03[A]) - EXHAUST SYSTEM - ASPIRATOR; 420-ASN 413504; 420CT-ASN 414490 (02) - ENGINE

84241119

SERVICE KIT

Kit, Aspirator; Incl. 1 - 11

1шт.

1

84218370

TUBE,57.15 mm OD x 250 mm L

Exhaust Aspirator

1шт.

2

84218371

TUBE,57.15 mm OD x 350 mm L

Exhaust Aspirator

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

87615741

BRACKET

1шт.

7

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

8

84137995

HOSE CLAMP,SAE #36 OD

Turnkey Grip 36

1шт.

9

87615742

HOSE

Air Cleaner To Aspirator

1шт.

10

406089A2

VALVE

Aspirator Check Valve

1шт.

11

87653892

HOSE,25.40 mm ID, 38.00 mm ID x 1300.00 mm, SAE 20R4 Class D1

Tailpipe To Aspirator

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nor Shown

1шт.

13

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.
