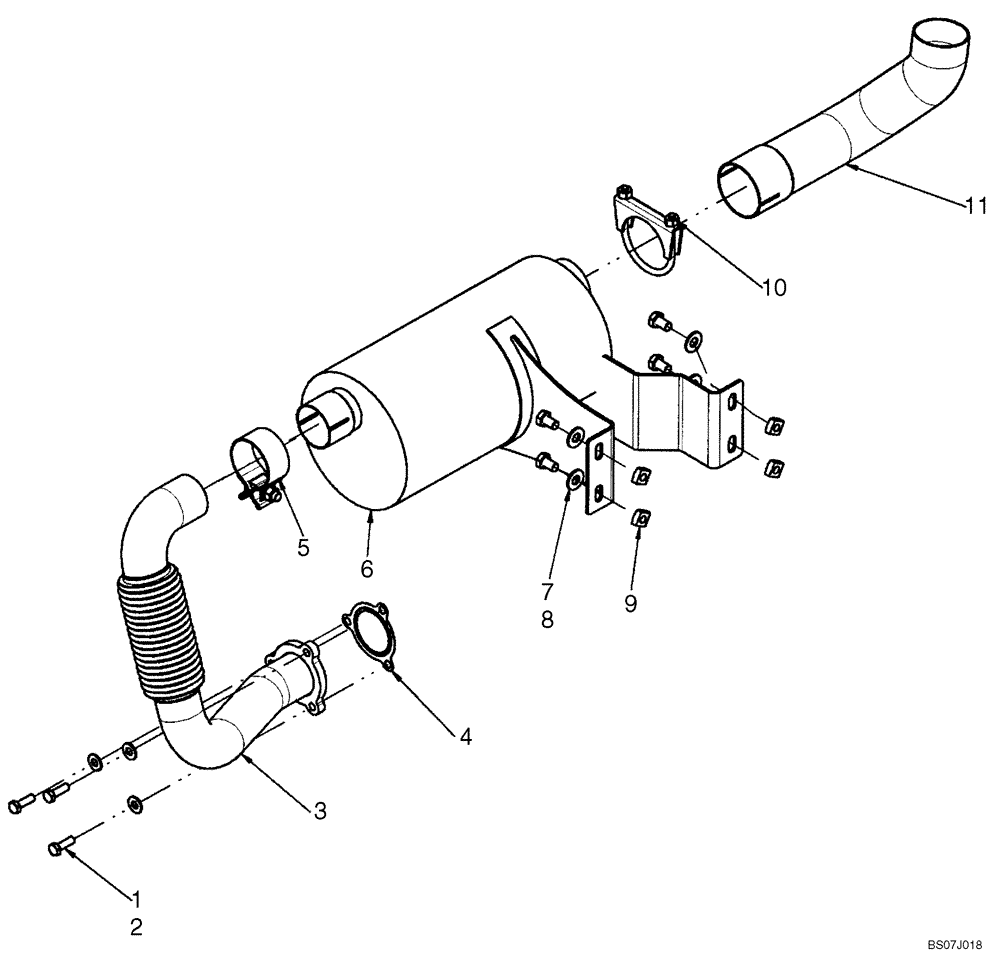

Запчасти Case 420CT (02-02) - ENGINE - EXHAUST SYSTEM (02) - ENGINE

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

3

87632396

EXHAUST SYSTEM PIPE

Flexible Exhaust Coupler

1шт.

4

87611895

GASKET,0.4mm Thk

1шт.

5

87644690

CLAMP

1шт.

6

87653888

MUFFLER

1шт.

7

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

9

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

4шт.

10

87461995

CLAMP,68mm ID, Muffler

1шт.

11

87653890

EXHAUST SYSTEM PIPE

Exhaust Tail Pipe BSN 413505

1шт.

11

REF

INSTRUCTION

Exhaust Tail Pipe ASN 413504 See Fig 09-20(02)

1шт.

12

87696527

MUFFLER

Muffler Wrap, Europe; Not Illustrated

1шт.

13

87393399

SPRING

Stainless Ties, Use To Secure Muffler Wrap; Not Illustrated

5шт.
