Запчасти Case 420CT (06-36) - FINAL DRIVE (420CT) (06) - POWER TRAIN

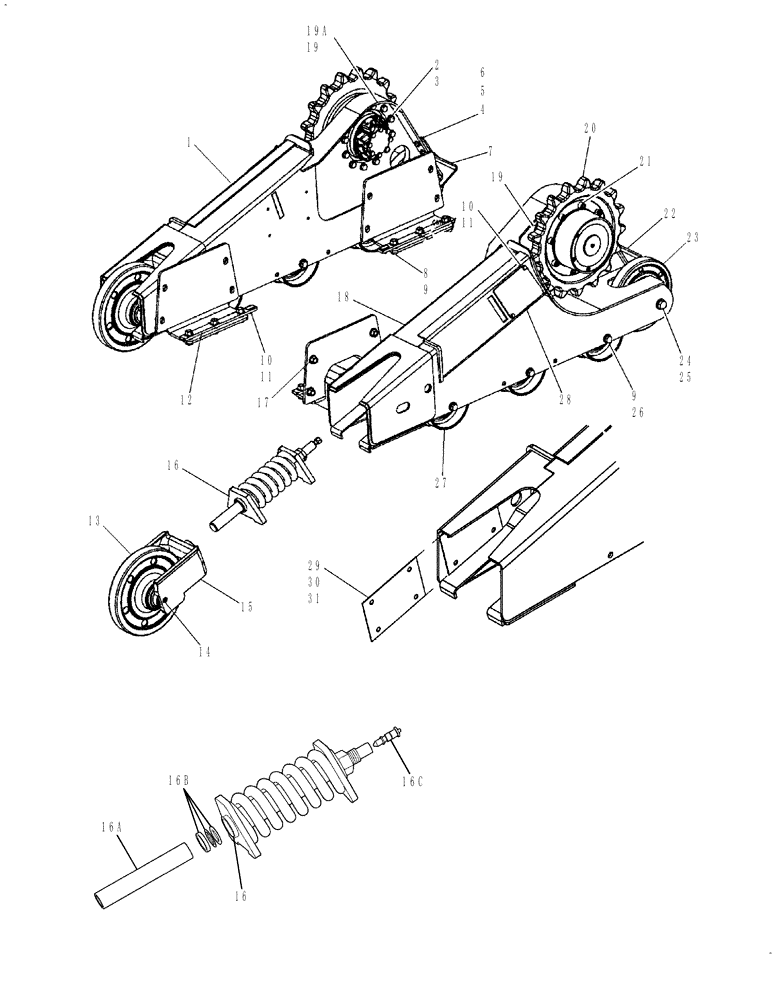

Схема запчастей Case 420CT - (06-36) - FINAL DRIVE (420CT) (06) - POWER TRAIN
2
6
8
10
16c
25
21
23
19
30
20
24
16
31
12
9
16a
18
17
27
7
19
10
13
16
26
1
22
19a
29
15
9
4
11
14
11
3
5
16b
28

Артикул

Название

Примечание

Количество

87563155

KIT

Roller And Idler; Includes Ref. 9, 13, 14, 23 - 26, 27 And Instructions

1шт.

1

87669337

FRAME

Track Frame RH, Used with Bonfiglioli or Rexroth Drive Motors

1шт.

2

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

24шт.

3

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

4

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

(Use with Rexroth Drive Motor)

8шт.

5

337475

NUT,M12, Cl 10

(Use with Rexroth Drive Motor)

8шт.

6

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

(Use with Rexroth Drive Motor)

8шт.

7

87459518

SCRAPER

Scraper Plate, RH; If Used (Use with Rexroth Drive Motor with Ref. 4, 5, & 6)

1шт.

8

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

9

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

24шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

11

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.

12

87364613

BAR

Bar W/Undercarriage Mount

4шт.

13

87480418

FRONT IDLER,350mm OD x 194mm W

350 mm, Front; Replaces 87462176, 87535298

2шт.

13

47378990R

REMAN-WHEEL IDLER

350 mm, Front

2шт.

13

47378990C

CORE-WHEEL IDLER

Return Part Number

2шт.

14

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

15

87462287

YOKE

Front Idler

2шт.

16

87602985

TENSIONER

Spring, Tension; Replaces 87458724

2шт.

16a

87602988

ROD

Piston Rod; Piston For Track Tensioner, Ref. 16

2шт.

16b

87602987

SERVICE KIT

Seal Kit For Track Tensioner; Incl. Scraper, Spacer And O-Ring

2шт.

16c

87356572

VALVE

Grease Valve For Tension Spring Ref 16

1шт.

84213764

CAP

Cap, Grease Valve For Tension Spring 87602985

1шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

18

87669345

FRAME

Track Frame LH, Used with Bonfiglioli or Rexroth Drive Motors

1шт.

19

87363008

SPACER

Motor Spacer; If Used

4шт.

19a

87583105

SPACER,214mm ID x 280mm OD x 13.25mm Thk

Spacer Motor

2шт.

20

87460888

SPROCKET

17 Tooth - 86 Pitch

2шт.

21

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

Screw, Socket Head M16 X 45 12.9 ZND

16шт.

21

87588869

HEX SOC SCREW,M16 x 45mm, Cl 10.9

Screw, Hex-Soc M16 X 45 10.9 ZND

16шт.

22

87459517

SCRAPER

Plate, LH; If Used (Use with Rexroth Drive Motor with Ref. 4, 5, & 6)

1шт.

23

87480413

IDLER,290mm OD x 220mm W

Replaces 87447230; 87535299

2шт.

24

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

25

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

26

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

12шт.

27

87535297

TRACK ROLLER

Replaces 87447228; If Used

8шт.

27

87480419

TRACK ROLLER

If Used; P/n includes Roller Shell, Shaft, Brackets, Plugs, O-rings, Sealing Rings, Bushings- All NSS

8шт.

28

87354210

COVER

Plate, Zerk Cover

2шт.

29

87650011

SERVICE KIT

Yoke Shim Kit; Incl. 30, 31 And Instructions

1шт.

30

87650010

PLATE

16 Gage Shim

2шт.

31

87650009

PLATE

12 Gage Shim

2шт.

Выбрано товаров: 41
