Запчасти Case 420CT (02-00) - FAN, RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE

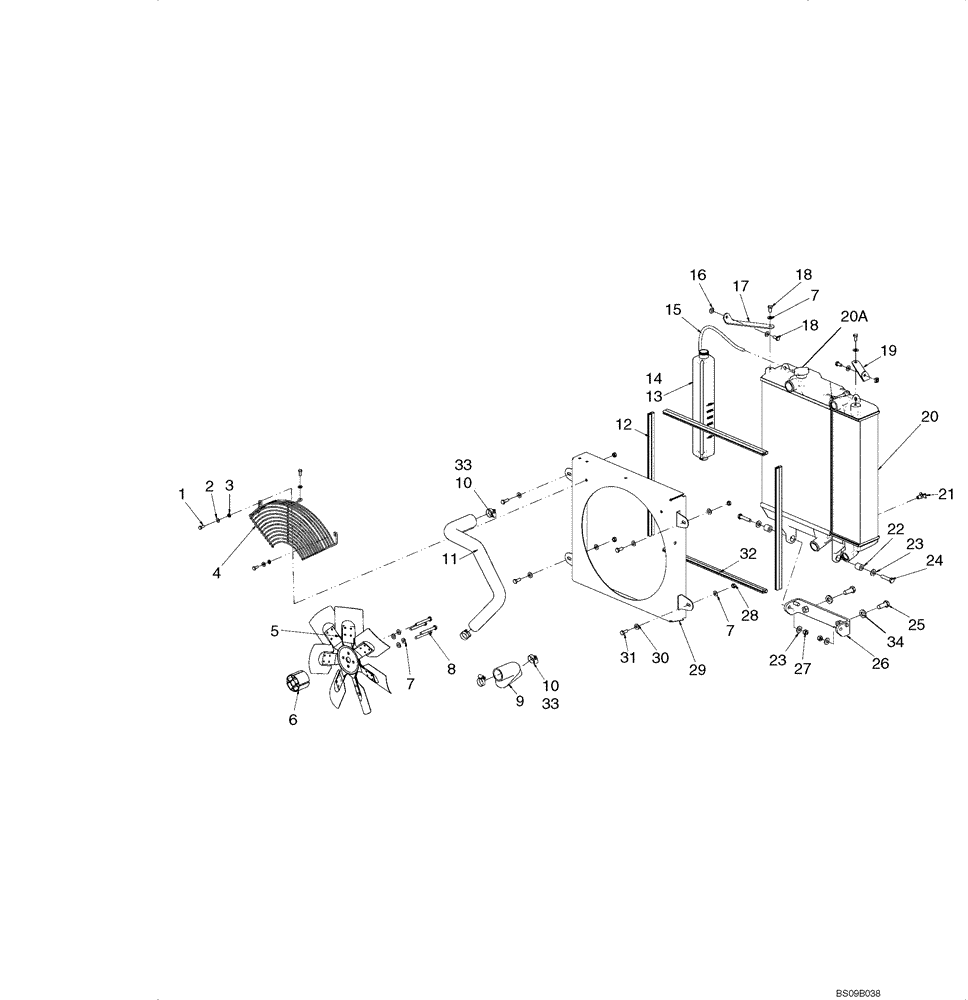

Схема запчастей Case 420CT - (02-00) - FAN, RADIATOR/OIL COOLER - COOLANT RECOVERY SYSTEM (02) - ENGINE
14
6
23
33
2
20a
15
28
1
10
23
9
7
11
10
22
21
8
4
29
34
32
18
26
31
30
27
5
19
33
25
13
3
7
20
18
16
24
12
7
17

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

87594970

GUARD

Guard, Fan

1шт.

5

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

5

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

6

87708428

SPACER

Fan Spacer, 80mm Length, Europe Only; If Used

1шт.

6

84140081

SPACER

Fan Spacer, Europe Only

1шт.

6

87565746

SPACER

Fan Spacer, 60mm Length

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

8

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

8

120074

BOLT,Hex, M10 x 90, 8.8

Replaces 120075; Used in Europe Fan Spacer

4шт.

9

87661377

RADIATOR HOSE,46.00 mm ID x 294.20 mm, SAE 30R2

Lower, If Used

1шт.

9

87719314

RADIATOR HOSE,46.00 mm ID x 294.20 mm, SAE 20R4 Class D1 Or D2

Lower

1шт.

10

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2-4шт.

11

87661376

RADIATOR HOSE,38.00 mm ID, 45.00 mm ID x 380.00 mm, SAE 20R4 Class D1 Or D2

Upper

1шт.

12

87648128

RUBBER SEAL,562mm L

Bulb Seal, 562mm (22 1/8 in.)

2шт.

13

87020980

BOTTLE,2L

Coolant Recovery Bottle; Incl 14

1шт.

14

257884A1

CAP

Cap, Coolant Bottle

1шт.

15

87534725

HOSE,7.9mm ID x 400mm L, SAE 20R3

Coolant Recovery

1шт.

16

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

17

87651799

BRACKET

Upper Radiator Mount, RH

1шт.

18

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3-4шт.

19

87651800

BRACKET

Upper Radiator Mount, LH

1шт.

20

87660842

RADIATOR

Radiator And Oil Cooler Module; See Fig 02-01

1шт.

20a

87687375

RADIATOR CAP

Radiator Cap

1шт.

21

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

22

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

2шт.

23

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

4шт.

24

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

If Used

2шт.

24

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

25

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

26

87676100

BRACKET

Lower Hinge Mount; If Used

1шт.

26

87720465

BRACKET

Lower Hinge Mount, Gray

1шт.

27

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

Nut, M12 X 1.75 Cl10

2шт.

28

86500689

NUT,M10 x 1.5, Cl 10

4шт.

29

87660816

SHROUD

Fan Shroud; If Used

1шт.

29

87719313

SHROUD

Fan Shroud, Gray

1шт.

30

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

4шт.

31

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

If Used

4шт.

31

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.

32

87578980

RUBBER SEAL,590mm L

Bulb Seal, 590mm (23 1/4 in.)

2шт.

33

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

34

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

Выбрано товаров: 44
