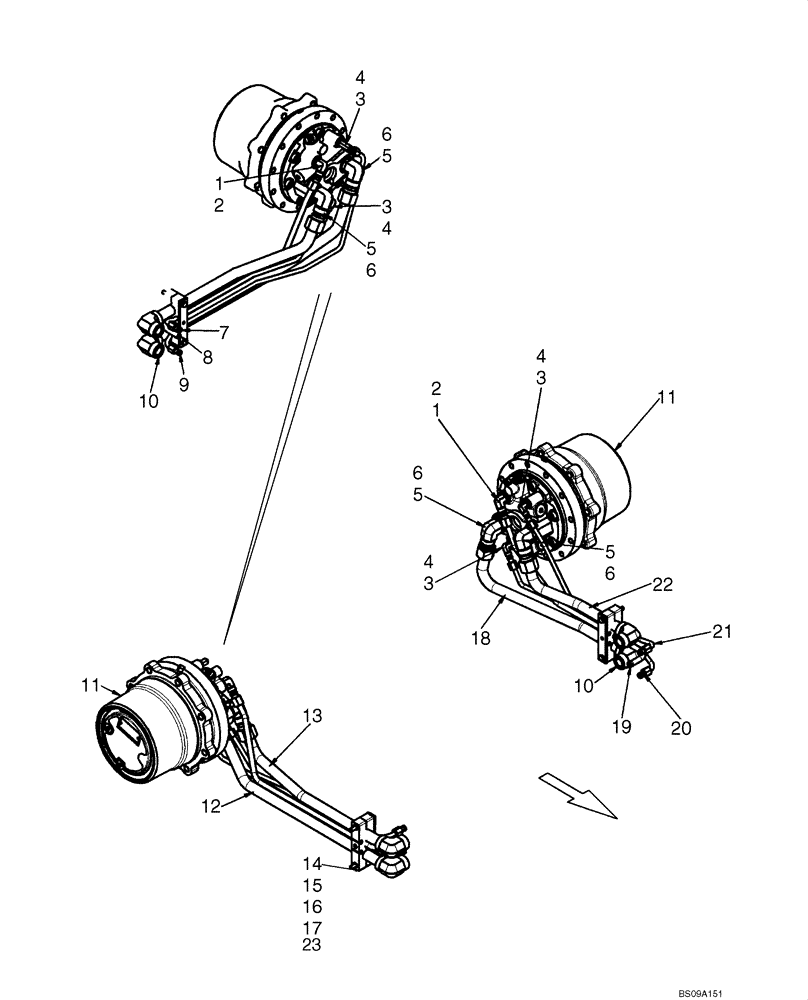

Запчасти Case 420CT (06-21) - HYDROSTATICS - DRIVE MOTORS (06) - POWER TRAIN

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 2

2шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

4шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

5

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 6

4шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

7

87647575

HYD TUBE,9.53 mm OD

Two Speed, RH

1шт.

8

87647571

HYD TUBE,12.7 mm OD

Case Drain, RH

1шт.

9

87647573

HYD TUBE,9.53 mm OD

Brake, RH

1шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

11

87588897

MOTOR-PUMP,50.9 CC

Two Speed Drive Motor, Track Drive; See Fig. 06-49

2шт.

11

87588897R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

11

87588897C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

12

87647526

HYD TUBE,25.4 mm OD x 659, 57.9 mm L

Bottom Loop, RH

1шт.

13

87647525

HYD TUBE,25.4 mm OD

Top Loop, RH

1шт.

14

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

4шт.

15

87452146

BAR

Top Bar Clamp

2шт.

16

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1/4 Pipe X 2.00 in. ZND

4шт.

17

87452108

CLAMP

4шт.

18

87647570

HYD TUBE,25.4 mm OD x 479.2, 125.3 mm L

Bottom Loop, LH

1шт.

19

87647572

HYD TUBE,12.7 mm OD

Case Drain, LH

1шт.

20

87647578

HYD TUBE,9.53 mm OD

Two Speed, LH

1шт.

21

87647574

HYD TUBE,9.53 mm OD

Brake, LH

1шт.

22

87647569

HYD TUBE,25.4 mm OD x 321.6, 70.6 mm L

Top Loop, LH

1шт.

23

9628098

NUT,M8 x 1.25, Cl 10

If Used

4шт.
