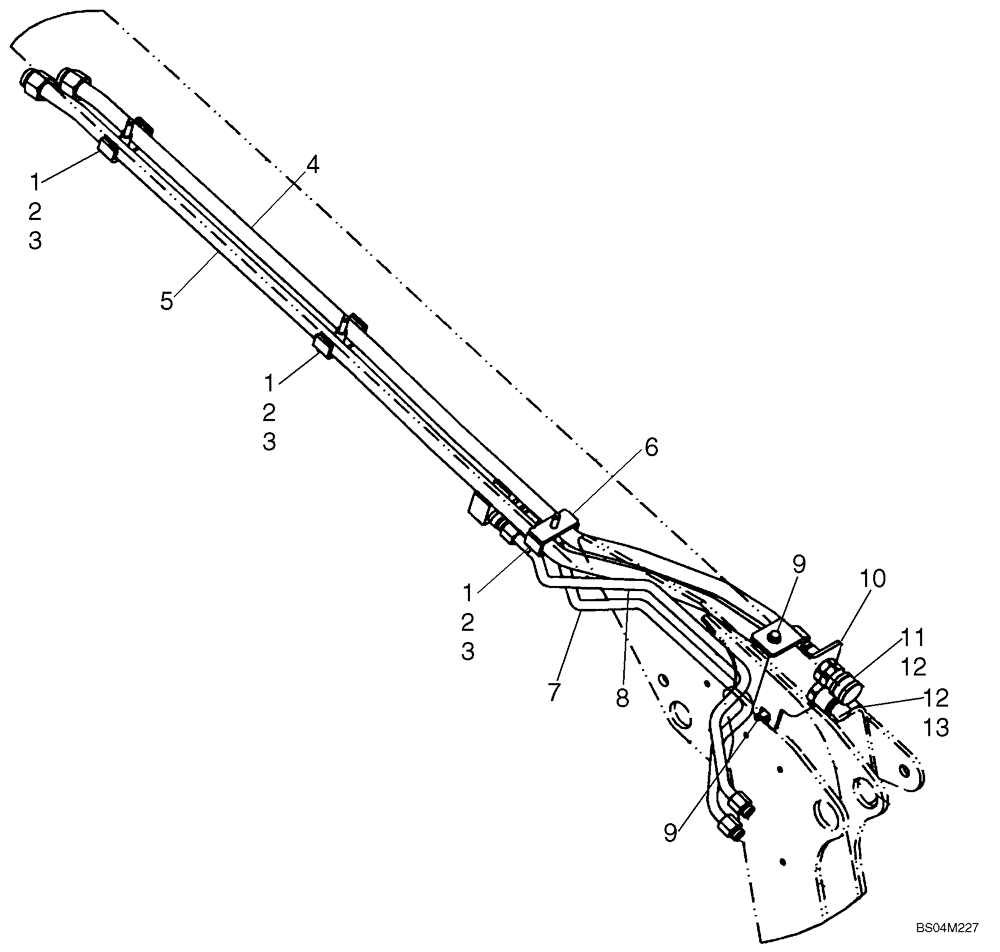

Запчасти Case 420CT (08-18) - HIGH FLOW - AUXILIARY SYSTEM (08) - HYDRAULICS

1

87020743

BRACKET

3шт.

2

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

3шт.

3

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3/8 x 2.5

3шт.

4

87023856

HYD TUBE,25.40 mm OD

1шт.

5

87024207

HYD TUBE,25.40 mm OD

1шт.

6

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

7

87023855

HYD TUBE,15.88 mm OD

1шт.

8

87023854

HYD TUBE,15.88 mm OD

1шт.

9

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

10

87023398

BRACKET

1шт.

11

87022671

COUPLING, QUICK, FEM

5/8, Female; Mating Conector For 87022671 (Female) Is 395268A1 (Male)

1шт.

12

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

13

87022672

QUICK MALE COUPLING

5/8, Male; Mating Connector For 87022672 (Male) Is 395267A1 (Female)

1шт.
