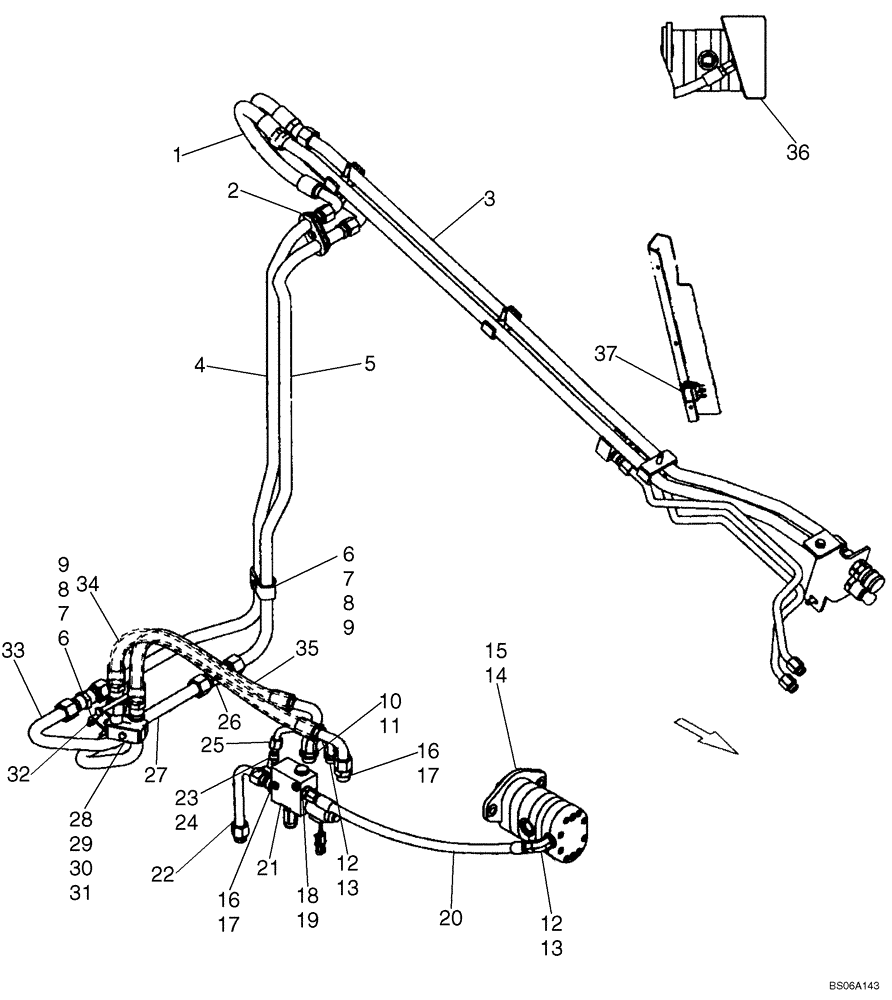

Запчасти Case 420CT (08-17A) - HIGH FLOW, SUPPLY AND RETURN (420CT) (08) - HYDRAULICS

1

87020048

HOSE,19.05mm ID x 675mm L

2шт.

2

87017999

SUPPORT

2шт.

3

REF

INSTRUCTION

See Figure 08-18

1шт.

4

87448073

HYD TUBE,25.4 mm OD

1шт.

5

87436536

HYD TUBE,25.40 mm OD

1шт.

6

87020743

BRACKET

2шт.

7

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

2шт.

8

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

9

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

2шт.

10

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45°, 1 1/16"-12 x 1 1/16"-12, O-Ring; Incl. 11

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

90°, 3/4"-16, 37° x 7/8"-14, O-Ring; Incl. 13

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

BN314821

HYDROSTATIC PUMP,25.4 CC

Component Parts Not Available AtTime Of Printing

1шт.

15

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

-044, 70 Duro, 3.739" ID x .070" Thk

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 17

2шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

3/4"-16, 37° x 3/4"-16, O-Ring; Incl. 19

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

87458726

HOSE,12.7mm ID x 575mm L

1шт.

21

87012669

VALVE

Combination; See Figure 08-20

1шт.

22

87445144

HYD TUBE,19.05 mm OD x 200.7, 93.9 mm L

Valve Out To Filter

1шт.

23

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 24

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

87423209

HYD TUBE,12.7 mm OD x 146.2, 113.4 mm L

1шт.

26

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

Union

2шт.

27

87436533

HYD TUBE,25.40 mm OD

1шт.

28

1546028C1

CLAMP,25.4mm ID x 82mm L

25.4 x 25.4

1шт.

29

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

30

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

31

9628098

NUT,M8 x 1.25, Cl 10

1шт.

32

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

33

87448072

HYD TUBE,25.4 mm OD

1шт.

34

87020053

HOSE,19.05mm ID x 900mm L, SAE 100R17

1шт.

35

87020054

HOSE,19.05mm ID x 760mm L

1шт.

36

87460011

COVER

Heelplate

1шт.

37

87414769

SWITCH

Rocker, High Flow

1шт.
