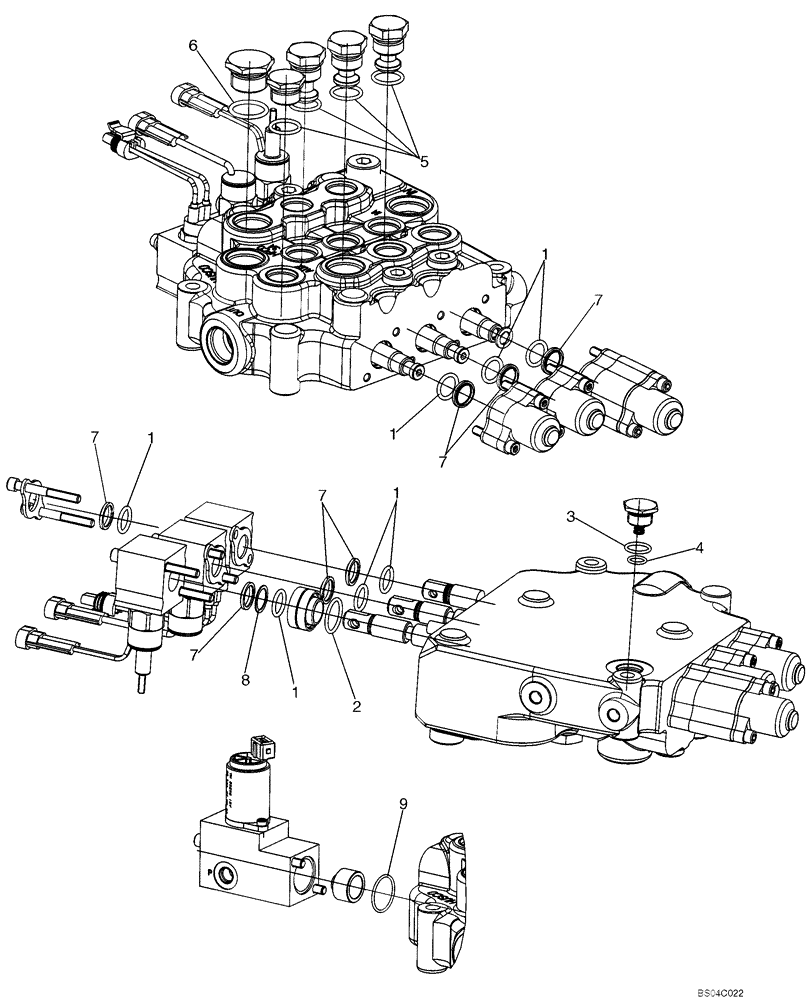

Запчасти Case 420CT (08-11) - VALVE ASSY, CONTROL - SEAL REPLACEMENT KITS (08) - HYDRAULICS

87445930

SEAL KIT

Seal Replacement Kit; See Figure 08-10

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring; .818

7шт.

2

NSS

NOT SOLD SEPARAT

O-Ring; 1.063

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring; .776

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring; .558

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring; .949

4шт.

6

NSS

NOT SOLD SEPARAT

O-Ring; 1.156

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper; .805

7шт.

8

NSS

NOT SOLD SEPARAT

Washer; .806

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring; 1.129

1шт.
