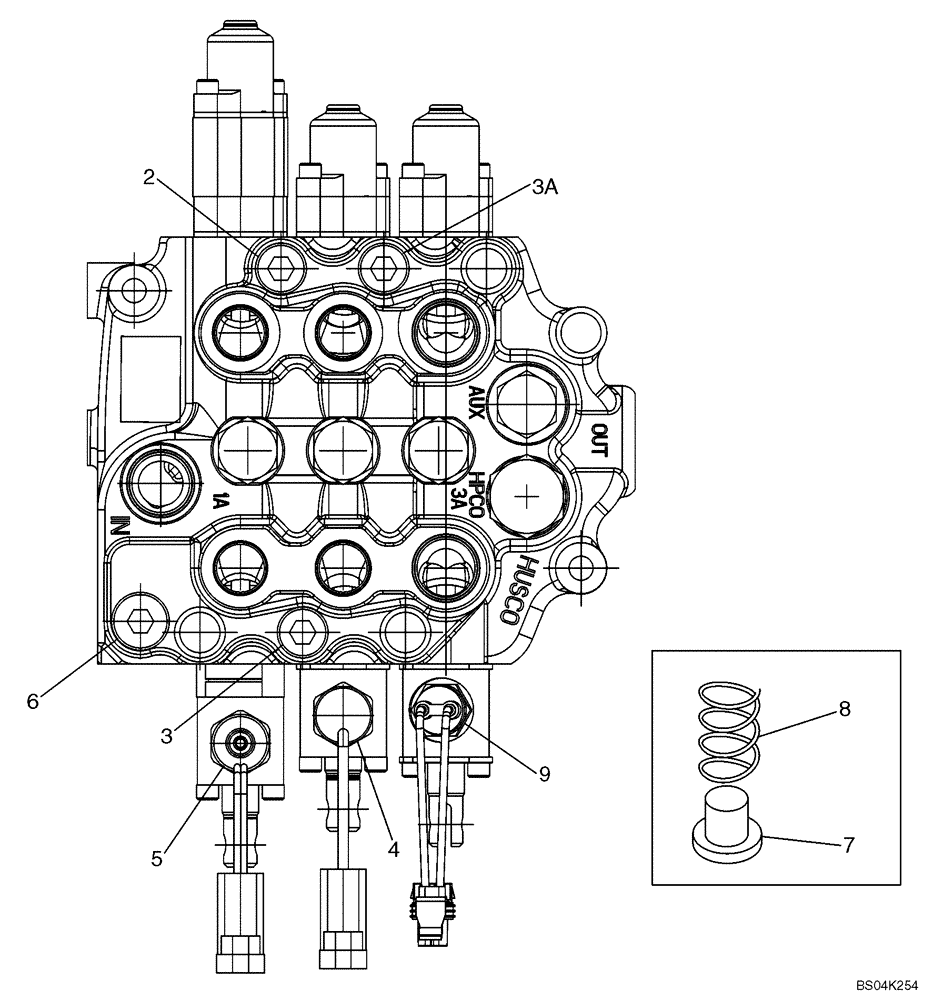

Запчасти Case 420CT (08-09) - VALVE ASSY, CONTROL - LOADER (08) - HYDRAULICS

87446760

CONTROL VALVE

Incl. 1 - 9

1шт.

87635384R

REMAN-HYD VALVE

420 SKID STEER NA BSN N7M466710 (2/05-), 420CT COMPACT TRACK LOADER - BSN N7M455401 (3/06-12/07), Reman for New PN 87446760

1шт.

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available; Not Illustrated

1шт.

1

87635384R

REMAN-HYD VALVE

420 SKID STEER NA BSN N7M466710 (2/05-), 420CT COMPACT TRACK LOADER - BSN N7M455401 (3/06-12/07), Reman for New PN 87527172

1шт.

1

87635384C

CORE-VALVE HYD

Return Number

1шт.

1

87445930

SEAL KIT

See Figure 08-11

1шт.

2

87445935

VALVE

Workport, Relief; Component Parts Not Serviced Separately

1шт.

3

87424302

PLUG

Workport, Shutoff; Component Parts Not Serviced Separately

2шт.

3a

87445932

VALVE

Anti-Cavitation Cartridge; If Used; Component Parts Not Serviced Separately

1шт.

4

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

5

87445988

SOLENOID,Spool Lockout, With Manual Override

Lockout; Component Parts Not Serviced Separately

1шт.

6

87445991

VALVE

Main Relief; Component Parts Not Serviced Separately

1шт.

7

87446002

POPPET

Load Check; Component Parts Not Serviced Separately

3шт.

8

87446003

SPRING,6.7mm OD

Load Check; Component Parts Not Serviced Separately

3шт.

9

87446617

SWITCH

Auxiliary Spool; Component Parts Not Serviced Separately

1шт.
