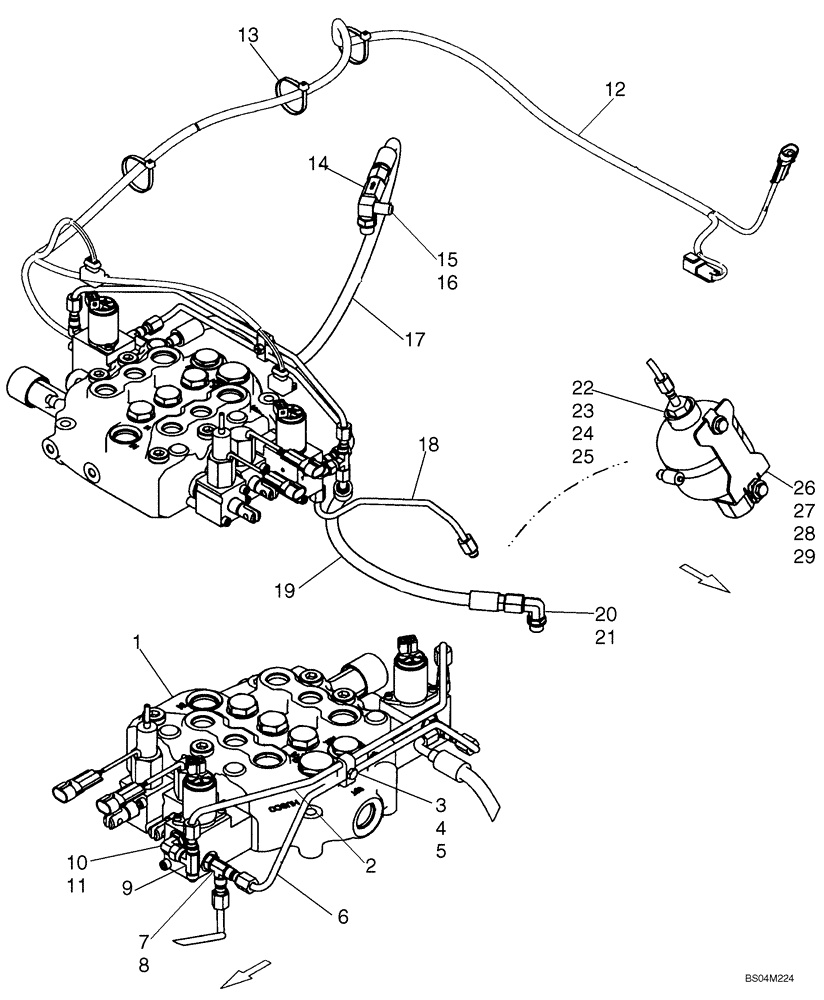

Запчасти Case 420CT (08-08) - HYDRAULICS, ATTACHMENT (08) - HYDRAULICS

87571206

KIT

EH Attach Controls; Incl. 1 - 29

1шт.

1

87527174

VALVE

EH Auxiliary; Replaces 87446766; See Figure 08-10; If Used

1шт.

1

87635385R

REMAN-HYD VALVE

420 SKID STEER, NA BSN N7M466710 (2/05-), 420CT COMPACT TRACK LOADER - BSN N7M455401 (3/06-12/07), Both EH Auxiliary, Reman for New PN 87527174

1шт.

1

87635385C

CORE-VALVE HYD

Return Number

1шт.

1

87583286

VALVE

EH Auxiliary; See Figure 08-10A; If Used

1шт.

2

87021276

HYD TUBE

1шт.

3

608089

CLAMP

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

5

87030561

NUT,M6 x 1, Cl 8

Replaces 832-41406

1шт.

6

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

7

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 8

2шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

218-841

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

If Used

1шт.

9

86513012

BRANCH TEE

Tee,37FL X Swivel Branch -04

1шт.

10

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 11

2шт.

11

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

87447970

HARNESS

Electro-Hydraulic Auxiliary

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

14

87441786

VALVE

In Line

1шт.

15

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 16

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87022702

HOSE

675 mm (26.57 in)

1шт.

18

87447764

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

19

87460042

HOSE,6.35mm ID x 560mm L

Case Drain

1шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87010110

HYD CONNECTOR

Incl 23; Replaces 218-5359; If Used

1шт.

22

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 23A

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Use With 22; If Used

1шт.

23a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Type F, #54; If Used

1шт.

24

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

25

86624732

ACCUMULATOR

If Used

1шт.

25

87376969

ACCUMULATOR

1шт.

26

87440253

ANGLE

If Used

1шт.

26

87621245

ANGLE

If Used

1шт.

26

87473790

BRACKET

Accumulator Bracket

1шт.

27

122158A1

NUT,M8, U

2шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
