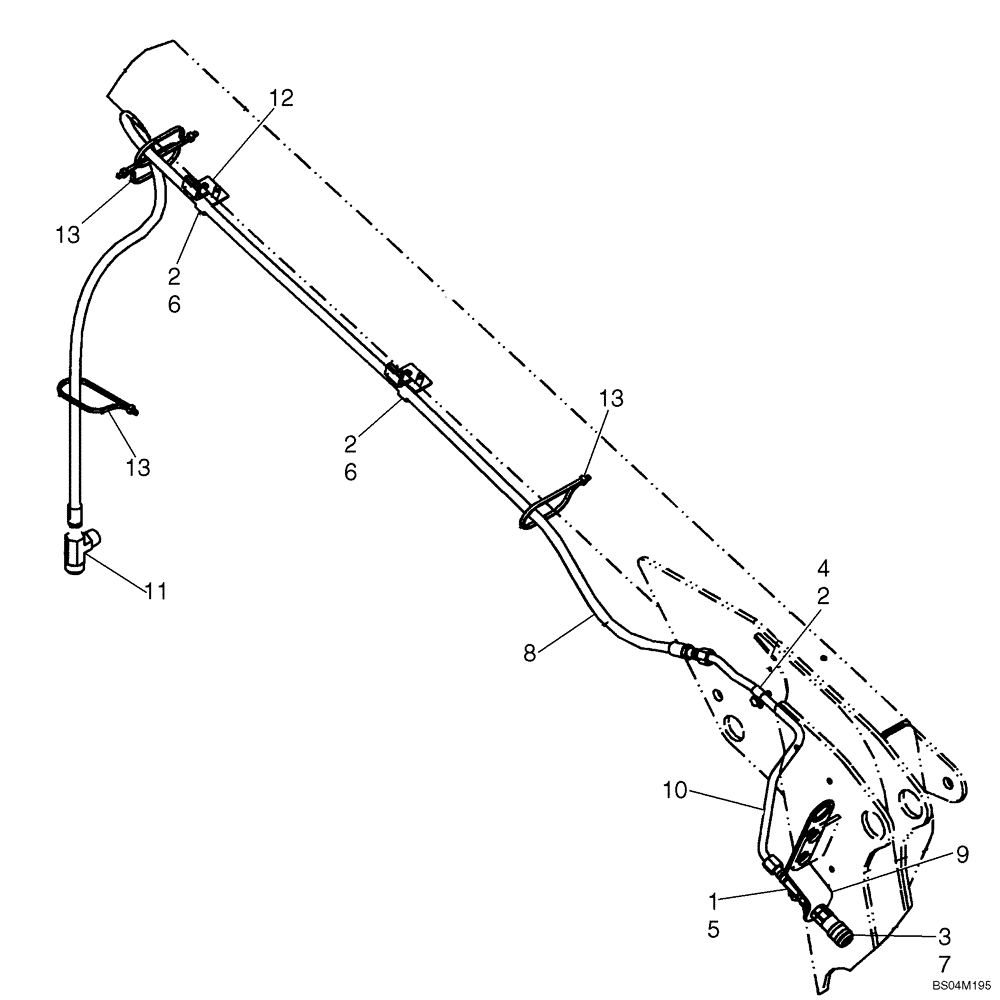

Запчасти Case 420CT (08-03A) - HYDRAULICS - CASE DRAIN (08) - HYDRAULICS

87024211

DIA KIT, ADD PROD

Kit, Case Drain; Incl 1 - 13

1шт.

1

262159

CAP,3/4" - 16 Fem JIC

Remove When Hydraulic Coupler Option is Installed; Replaces 218-755

1шт.

2

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

3шт.

3

524036

BHD LOCK NUT,Blkhd, 3/4"-16

Replaces 218-1255

1шт.

4

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

87426293

TEE

Replaces 86511870

1шт.

6

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

87019286

COUPLING

Female

1шт.

8

87021273

HOSE,2655.00 mm, SAE 100R6

1шт.

9

87023530

BRACKET

1шт.

10

87024208

HYD TUBE,12.70 mm OD

1шт.

11

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

Replaces 90 deg Elbow In Tank Case Drain Port; Replaces 218-566

1шт.

12

87447813

BRACKET

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.
