Запчасти Case 420CT (06-13) - PUMP, TANDEM (06) - POWER TRAIN

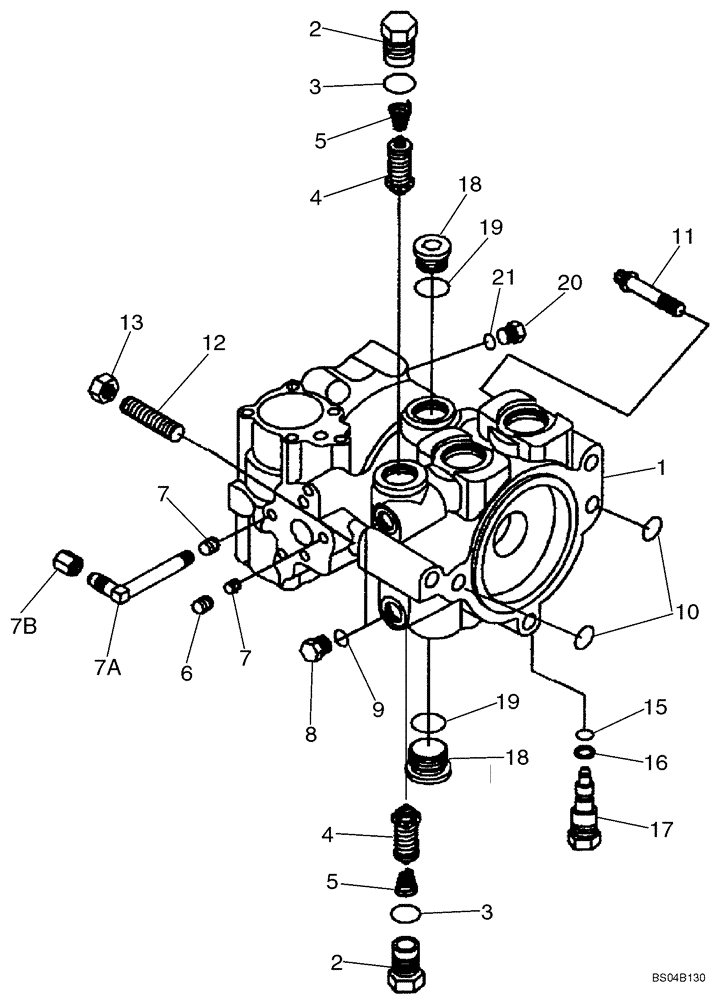

Схема запчастей Case 420CT - (06-13) - PUMP, TANDEM (06) - POWER TRAIN
15
4
7b
16
2
19
4
6
11
13
12
18
1
18
3
21
5
3
8
20
7
19
9
17
7a
7
10
2
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Rear Pump

1шт.

87055822

PUMP,43 CC

(420) Incl. 1 - 21; Incl. Parts On Figure 06-10 - 06-15

1шт.

87055822R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87055822C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87381946

PUMP

(420CT) Incl. 1 - 21; Incl. Parts On Figure 06-10 - 06-15

1шт.

1

402365A1

HOUSING

1шт.

H436258

VALVE, PRESSURE RELI

EF Incl. 2 - 5; Part of 87055822 (420)

2шт.

NSS

NOT SOLD SEPARAT

Part number Not Available at Time Of Printing; Incl. 2 - 5; Part of 87381946 (420CT)

2шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Included in 140008A1 Seal Kit

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

5

86993468

SPRING

1шт.

6

F23137

PLUG

1шт.

7

86993479

PIPE PLUG,1/16" - 27

2шт.

7a

86993480

ELBOW

90 deg

1шт.

7b

86993467

CAP

1шт.

140008A1

GASKET KIT

Overhaul Seal And Gasket Kit; Incl. (10) Rings, (20) O-Rings, (6) Gaskets, (2) Seals; Incl. Ref 3, 10, 15, 16

1шт.

8

76349

PLUG,9/16" - 18 ORB

Incl. 9

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Included in 140008A1 Seal Kit

2шт.

11

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

1шт.

12

K608432

STUD,1/2" - 13 x 4-1/2"

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

86993475

O-RING

Included in 140008A1 Seal Kit

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Included in 140008A1 Seal Kit

1шт.

17

87039612

BY-PASS VALVE

Incl. Ref 15, 16

1шт.

18

9841223

PLUG,1-1/16" - 12 ORB

Incl. 19

2шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

9672438

PLUG,7/16" - 20 ORB

Incl. 26

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 30
