Запчасти Case 420CT (06-08B) - MOTOR ASSY - REXROTH - SINGLE SPEED (420CT) (06) - POWER TRAIN

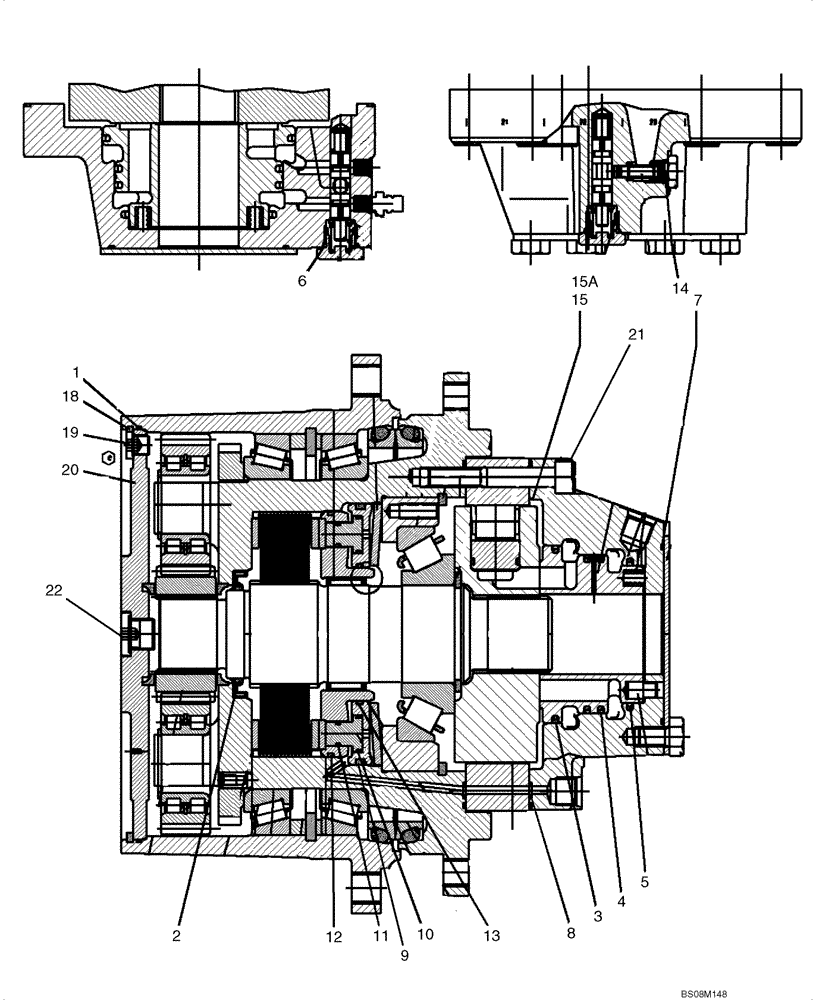

Схема запчастей Case 420CT - (06-08B) - MOTOR ASSY - REXROTH - SINGLE SPEED (420CT) (06) - POWER TRAIN
19
10
18
9
2
15a
5
13
3
1
11
15
12
22
8
4
7
21
6
14
20

Артикул

Название

Примечание

Количество

87355890

MOTOR

Motor,MOTOR, GRM8 280CC/REV W/ 3.66:1 Reduction

1шт.

87355890R

REMAN-HYD MOTOR

Reman for New PN 87355890

1шт.

87355890C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

87383545

SEAL KIT

Seal Kit, GRM8 Single Speed Motor; Incl. 1 - 17

1шт.

1

87575210

O-RING,210MM ID x 2MM Width

210 X 2.0 Viton

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft Seal, 45 X 65 X 6 Viton

1шт.

3

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

4

NSS

NOT SOLD SEPARAT

Rod Seal

2шт.

5

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, 13.60 X 2.4

1шт.

7

NSS

NOT SOLD SEPARAT

Square Ring, 88.62 X 1.68 Viton

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring, 5.28 X 1.78 Viton

2шт.

9

NSS

NOT SOLD SEPARAT

Square Ring, 127 X 3.4 Viton

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, 15.6 X .78 Viton

6шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, 9.25 X 1.78 Viton

6шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, 120.33 X 2.62 Viton

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring, 66.35 X 2.62 Viton

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, 8.92 X 1.83 Viton

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, 19 X 1.50 Viton

8шт.

15a

NSS

NOT SOLD SEPARAT

MCR3 LD Piston Ring, Issue A

8шт.

16

NSS

NOT SOLD SEPARAT

Square Ring, 171.5 X 1.68 Viton; Not Illustrated

2шт.

17

NSS

NOT SOLD SEPARAT

Sensor Port Gasket; Not Illustrated

1шт.

18

87575214

SNAP RING

1шт.

19

87575213

PLUG

Drain Plug, M10 X 1

1шт.

20

87575211

COVER

Motor Cover

1шт.

21

87383546

Kit, Cam Bolt GRM8 Single Speed; Incl. (2) M12 X 65 SHCS, (8) M10 X 65 SHCS

1шт.

22

87579238

PLUG

M16 x 1.5 A2C

1шт.

Выбрано товаров: 27
