Запчасти Case 420CT (06-03) - HYDROSTATICS - LOAD MANAGEMENT SYSTEM, KIT (06) - POWER TRAIN

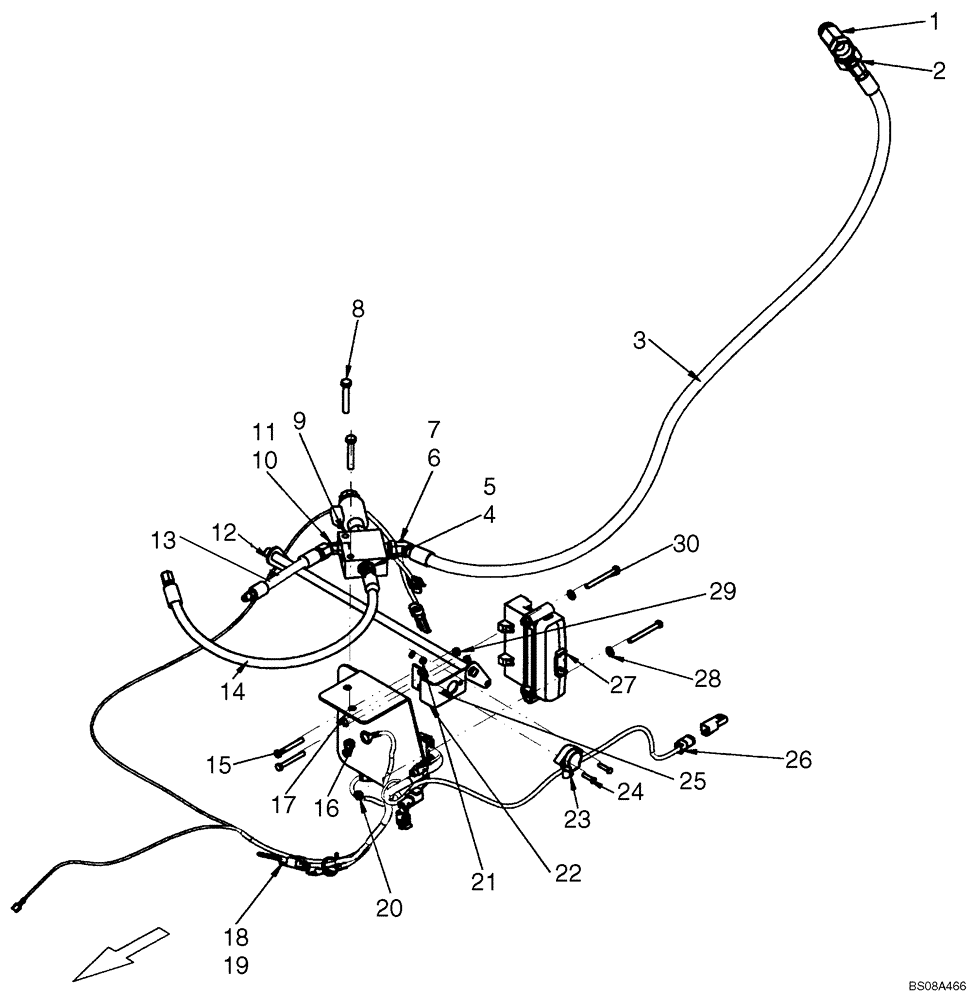

Схема запчастей Case 420CT - (06-03) - HYDROSTATICS - LOAD MANAGEMENT SYSTEM, KIT (06) - POWER TRAIN
14
29
21
5
17
18
28
23
4
19
2
30
16
11
13
9
3
26
25
15
12
24
22
27
8
6
10
7
20
1

Артикул

Название

Примечание

Количество

1

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

1шт.

3

87593374

HOSE

Valve Drain

1шт.

4

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 5

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Elbow, 45 Deg 1/2 X 3/8 Tube 37Fl; Incl 7

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

9

87583619

HYDRAULIC VALVE

Anti Stall Throttle Valve

1шт.

10

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 11

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

87645662

CRANK

Crank, Load Management System

1шт.

13

87654829

HOSE

Hose, Valve Supply Extension, 202mm (7 15/16 in.)

1шт.

14

87015466

HOSE

Hose, Hydrostatic Drive, 501mm (19 11/16 in.)

1шт.

15

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

16

9628098

NUT,M8 x 1.25, Cl 10

2шт.

17

87664467

BRACKET

Anti Stall Bracket

1шт.

18

87662902

WIRE CONNECTOR

Connector, Machine Model (420CT)

1шт.

19

87662901

WIRE CONNECTOR

Connector, Machine Model (410)

1шт.

20

86509309

NUT,1/4"-28, G5

2шт.

21

87016571

NUT,M5, Cl 5

2шт.

22

87645660

BRACKET

Mount, Throttle Position Sensor

1шт.

23

87629051

SENSOR

Throttle Control Sensor

1шт.

24

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

2шт.

25

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

26

87593398

HARNESS

Load Management Harness

1шт.

27

87583620

MODULE

Control Module, Load Management System

1шт.

28

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

29

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

30

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

Bolt, M6 X 60 Cl 8.8

2шт.

Выбрано товаров: 30
