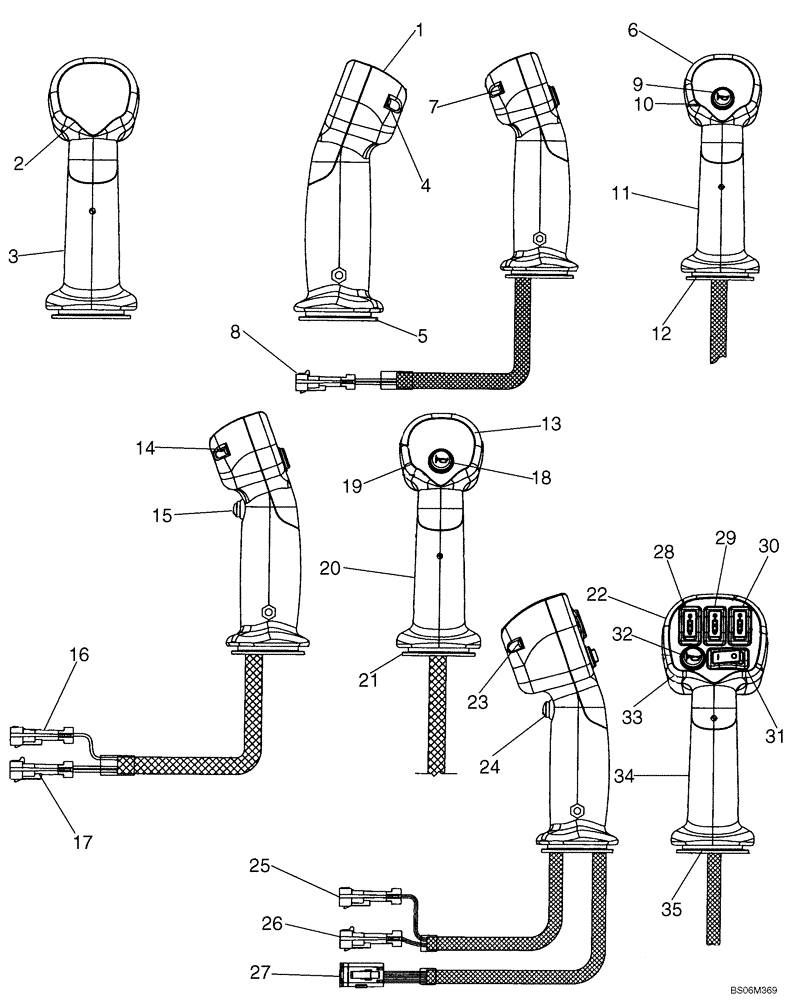

Запчасти Case 420CT (04-12A) - CONTROLS, RIGHT HAND - HANDLE; IF USED, SEE ADAPTER, REF 5 (04) - ELECTRICAL SYSTEMS

1

87563565

HANDLE

No Switches; Incl. 2 - 5

1шт.

2

87582393

PLATE

1шт.

3

87582391

HANDLE

1шт.

4

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

5

87527964

ADAPTER

Adapter

1шт.

6

87563566

HANDLE

With Horn; Incl. 7 - 12

1шт.

7

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

8

253294A1

CONNECTOR, ELEC

CONNECTOR Gray

1шт.

9

87427729

SWITCH

Horn

1шт.

10

87582394

PLATE

1шт.

11

87582391

HANDLE

1шт.

12

87527964

ADAPTER

Adapter

1шт.

13

87563567

HANDLE

With Horn, Ride Control; Incl. 14 - 21

1шт.

14

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

15

87427352

SWITCH

Ride Control

1шт.

16

256341A1

ELEC CONNECTOR,Male, 2 Pin

Black

1шт.

17

253294A1

CONNECTOR, ELEC

CONNECTOR Gray

1шт.

18

87427729

SWITCH

Horn

1шт.

19

87582394

PLATE

1шт.

20

87582392

KNOB

1шт.

21

87527964

ADAPTER

Adapter

1шт.

22

87563568

HANDLE

With Horn, Ride Control, Front Electric; Incl. 23 - 35

1шт.

23

86837247

SCREW,#4-40 x 1 1/2", w/LW

2шт.

24

87427352

SWITCH

Ride Control

1шт.

25

253294A1

CONNECTOR, ELEC

CONNECTOR Gray

1шт.

26

256341A1

ELEC CONNECTOR,Male, 2 Pin

Black

1шт.

27

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Gray

1шт.

28

87427685

SWITCH

Front Electric 1

1шт.

29

87427686

SWITCH

Front Electric 2

1шт.

30

87427687

SWITCH

Front Electric 3

1шт.

31

87427688

SWITCH

Front Electric 4

1шт.

32

87427729

SWITCH

Horn

1шт.

33

87582395

PLATE

1шт.

34

87582390

HANDLE

1шт.

35

87527964

ADAPTER

Adapter

1шт.
