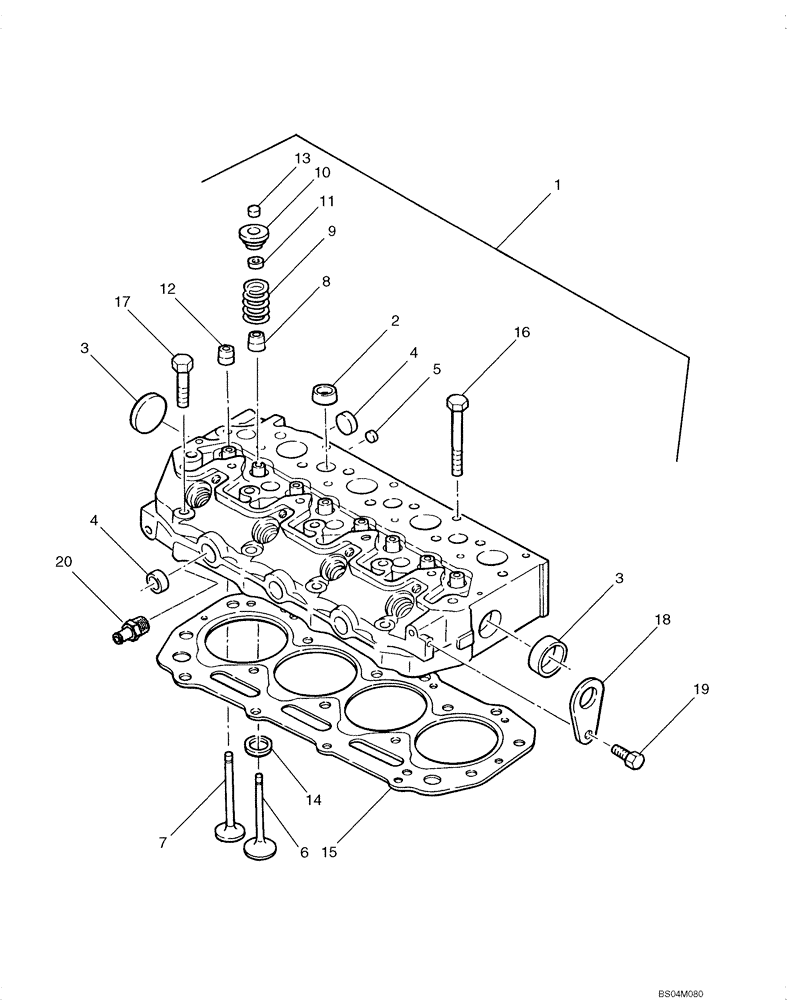

Запчасти Case 420CT (02-08) - CYLINDER HEAD (02) - ENGINE

1

SBA111010670

CYLINDER HEAD

Incl. Ref 2 - 14

1шт.

SBA111010671R

REMAN-CYLINDER HEAD

420 BSN N7M466710 (2/05-), 420CT BSN N7M455401 (3/06-12/07), Reman For New P/N SBA111010670

1шт.

SBA111010671C

CORE-CYLINDER HEAD

Return Number

1шт.

2

SBA064210018

PLUG

Sealing

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

4шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166350

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176360

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve Guide, Intake

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

Cotter

16шт.

12

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

13

SBA120216040

CAP

If Used

8шт.

13

SBA120216041

CAP

If Used

8шт.

14

SBA110136400

VALVE SEAT

Intake

4шт.

15

SBA111147581

CYLINDER HEAD GASKET,0.4mm Thk

0.4 Thickness; Replaces SBA111147580; No Longer Used, Order SBA111147591

1шт.

15

SBA111147591

CYLINDER HEAD GASKET,0.5mm Thk

0.5 Thickness; Replaces SBA111147590; If Used

1шт.

15

SBA111147741

CYLINDER HEAD GASKET

If Used

1шт.

16

SBA111136480

BOLT

Head

14шт.

17

SBA111136490

BOLT

Head

4шт.

18

SBA195816540

LIFTING EYE

2шт.

19

SBA011510816

BOLT

M8 x 16

2шт.

20

SBA198487901

CONNECTION

Connector

1шт.
