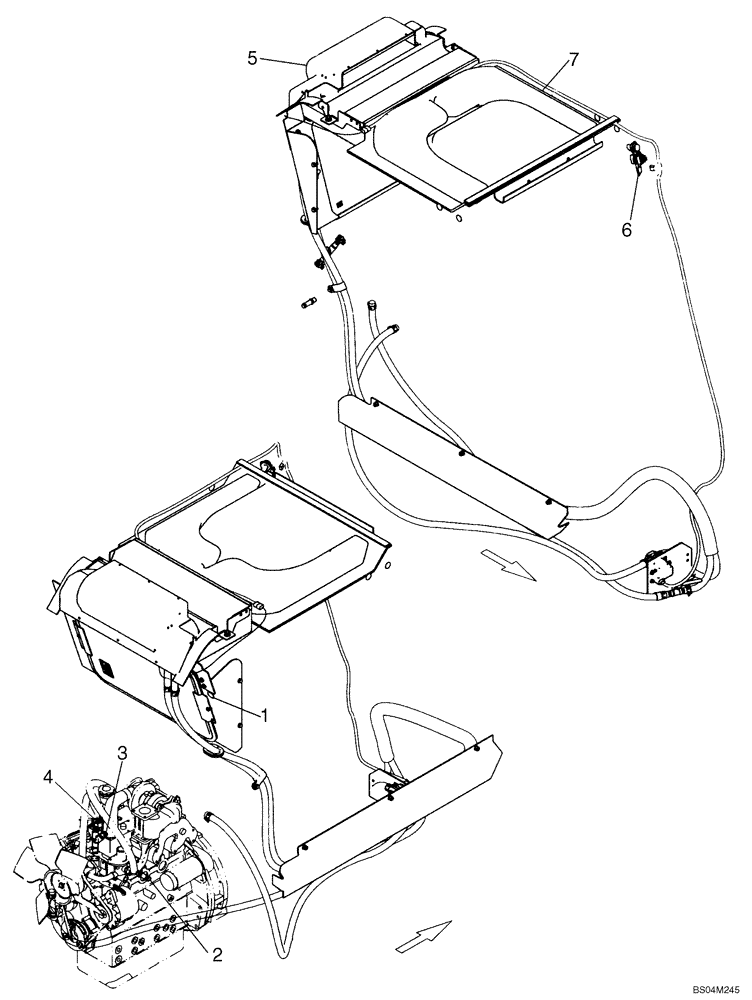

Запчасти Case 420CT (09-35) - HEATER, DELUXE (09) - CHASSIS

1

86625129

PLUG,Dome, 1" Hole, Nylon

Replaces 353-411

1шт.

2

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

2шт.

3

86530043

FITTING,5/8” Y-Fitting

Y Connecter

1шт.

4

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

No Longer Used, Order 87443511

2шт.

4

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

5

87029159

HEATER ASSY.

See Figure 09-37

1шт.

6

87555249

SWITCH

AC On/Off Switch

1шт.

7

REF

INSTRUCTION

See Figure 09-36

1шт.
