Запчасти Case 420CT (09-25A) - CAB DOOR - SPRING ASSIST MOUNTED TO WIPER MOTOR COVER (09) - CHASSIS

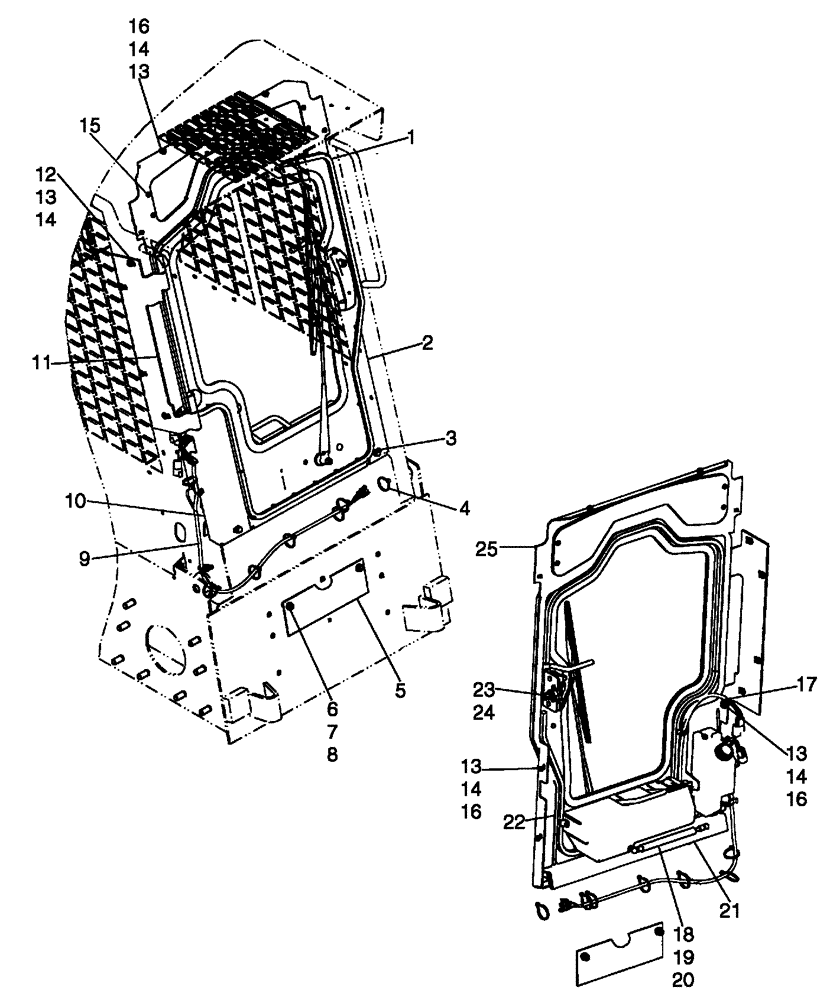

Схема запчастей Case 420CT - (09-25A) - CAB DOOR - SPRING ASSIST MOUNTED TO WIPER MOTOR COVER (09) - CHASSIS
15
1
14
10
14
25
17
13
16
12
2
19
8
14
3
5
13
11
16
13
16
6
9
13
4
24
23
7
18
20
21
22
14

Артикул

Название

Примечание

Количество

1

87462481

DOOR ASSY.

See Figure 09-25B

1шт.

2

87459553

PANEL

Left Hand

1шт.

3

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

Hex Wash Hd, 3/8"-16 x 7/8"

2шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

10шт.

5

87461248

PLATE

Front Plate

1шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

86512554

NUT,M10 x 1.5, Cl 10

2шт.

8

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

9

87460753

WIRE HARNESS

Door Jumper

1шт.

10

87459554

PANEL

Right Hand

1шт.

11

87459542

HINGE

1шт.

12

87030561

NUT,M6 x 1, Cl 8

4шт.

13

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

16шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

15

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

2шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

8шт.

17

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

9.5 mm Insulated J 3/8 in Bolt

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Gas Strut 395264A2 Is Part Of Door Assy; See Fig 09-25B

1шт.

19

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

20

189609A1

BALL STUD,M8 x 1.25

Ball, Metric; M8 x 1.25

1шт.

21

87459555

CHANNEL

Threshold

1шт.

22

87462531

EDGE

Trim, Left Hand Panel

1шт.

23

280980

NUT,7/16"-14, GC

1шт.

24

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

M12 x 24.5 x 3, HT

1шт.

25

87459546

PANEL

See Figure 09-25C

1шт.

26

395264A2

GAS STRUT

Gas Shock, Extended Length 400mm (15 3/4 in.)

1шт.

Выбрано товаров: 26
